Removing Front Apron

WARNING: This page is about a different variant/trim than selected.

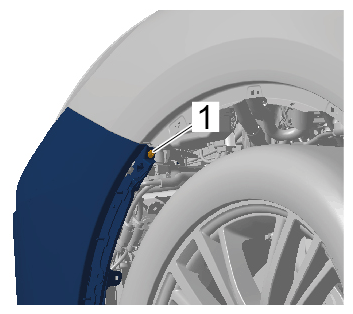

  1. Unscrew fastening screw -1-  on the wing.
    G15237196Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw

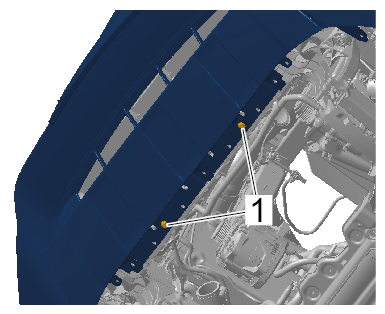

  2. Unscrew fastening screws -1-  .
    G15237197Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

    Information

    The number of electric plug connections can vary depending on equipment.

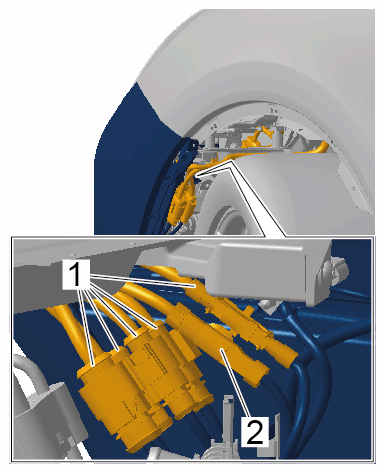

  3. Release and disconnect electric plug connections -1-  and water hose -2-  from wire harness for front apron.
    G15237198Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

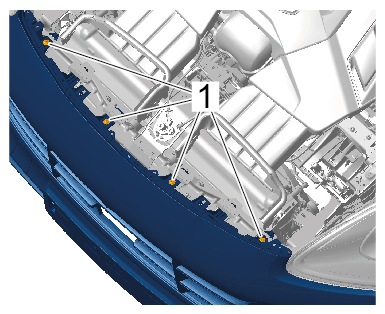

  4. Unscrew front fastening screws -1-  at the top.
    G15237199Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws at the top

    Information

    The help of another person is required.

  5. Remove front apron.
