Subsequent Work

WARNING: This page is about a different variant/trim than selected.

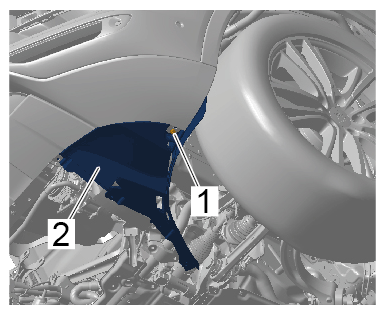

Position the brake -2- air duct, screw ii the fastening screw -1- and tighten it to > Tightening torque 3 Nm (2 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Only without Sport Design: Install front wheel covers.
- > 661919 REMOVING AND FITTING FRONT WHEEL COVER, FRONT
Install wheel housing liner front in the front bumper area.
- > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
Vehicles without power unit guard Fasten front cover in the area of the front bumper and air duct brake.
- > WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY
Vehicles with power unit guard Install power unit guard.
- > 108019 REMOVING AND INSTALLING POWER UNIT GUARD
Installing the cover on lock carrier.
- > 703919 REMOVING AND FITTING THE COVER ON LOCK CARRIER
Secure ground strap for battery.
- > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
For vehicles with front assistance systems: Calibrate infrared camera.
- > 908055 REPLACING INFRARED CAMERA
Calibrate front corner radar.
- > 916625 CALIBRATING FRONT CORNER RADAR
Calibrate Surround View camera.
- > 917225 CALIBRATING SURROUND VIEW CAMERA
