Disassembling Front Bumper

WARNING: This page is about a different variant/trim than selected.

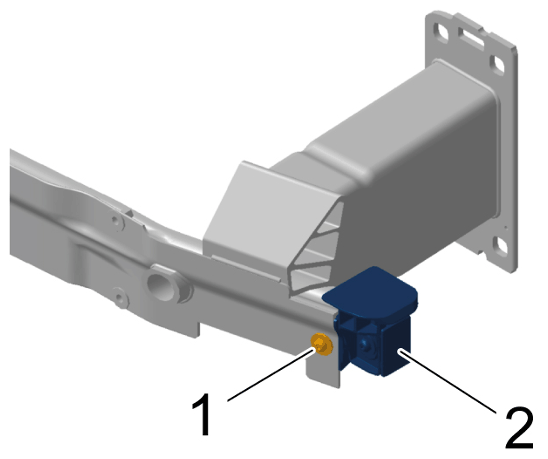

  1. Unscrew screw -1-  and remove adjusting element -2-  from the front bumper.
    G15237188Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw
