Assembling Front Bumper

WARNING: This page is about a different variant/trim than selected.

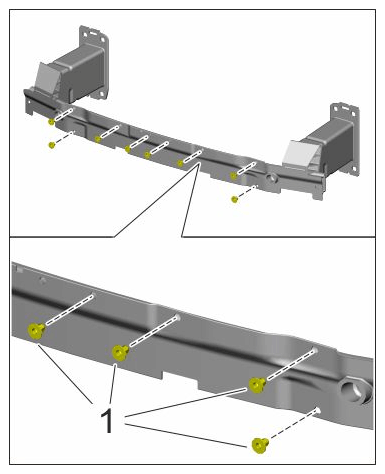

  1. Install rivet nuts.
    G15237189Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rivet nuts

  2. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten screw securing adjusting element to front bumper to > Tightening torque 8 Nm (6 ftlb.)  .
