Removing Front Bumper

NOTIFICATION

Different tightening torque for screwing self-tapping screws into a new or existing, old thread.

• Incorrectly screwed joints
• Risk of damage to screw thread
  1. → Observe different tightening torques.
  2. → When screwing into an already shaped, old thread, first screw in screws several turns by hand, then screw in completely using a tool.

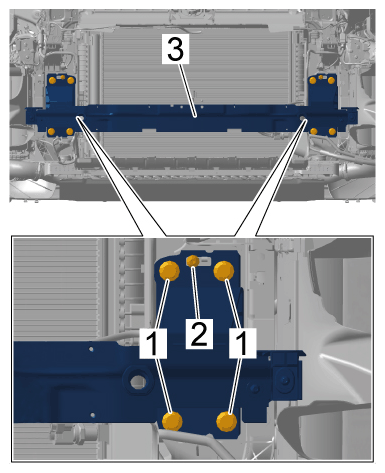

1. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

2. Unscrew pre-assembly screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pre-assembly screws

3. Remove front bumper -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front bumper
