Installing Front Bumper

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

Tighten pre-assembly screws to > Tightening torque 8 Nm (6 ftlb.) .
Tighten screws to > Tightening torque 60 Nm (44 ftlb.) and observe the tightening sequence > Tightening sequence .

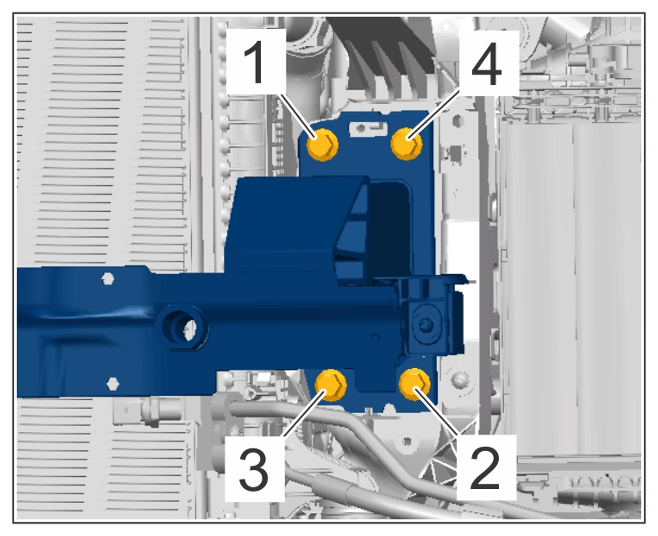

Fig 1: Front Bumper Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence
