Preliminary Work - Section From Fuel Tank To Underbody
WARNING: This page is about a different variant/trim than selected.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapors.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
- → Ventilate the work area well.
- → Never ingest or inhale.
- → Read specific information on the Hazard Sheet.
- → Wear personal protective gear.
- → Do not smoke, eat or drink in the work area.

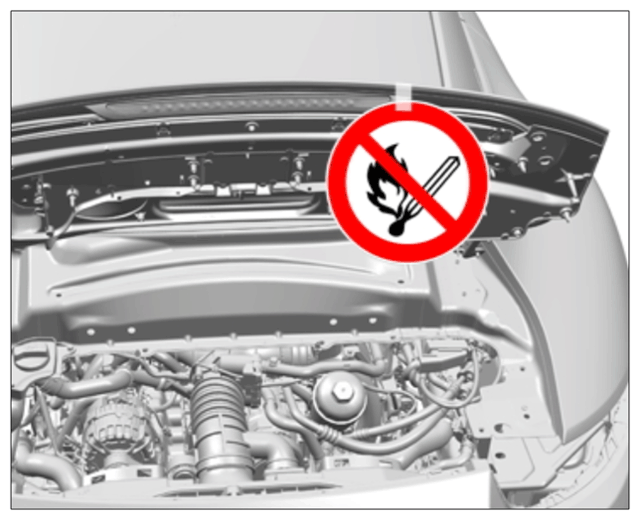

- Attach or mount a warning sign in a clearly visible position on the vehicle.
Example of a warning sign
Information
- The position of the fuse for the fuel pump can be found in the current Porsche After Sales vehicle electrical system documentation (PAB) fuse assignment.
- → PPN → Porsche After Sales vehicle electrical system documentation (PAB)
- Relieve fuel pressure in the system.
- 2.1 Pull out fuse for fuel pump.
- 2.2 Start the engine, wait until it stops and then re-insert the fuse.
- Remove fuel tank.
> Removing and installing fuel tank
