Additional Information On Recommended Fuel Transfer Units

WARNING: This page is about a different variant/trim than selected.
  1. > VAS 5190A - Fuel extractor  must now be prepared for draining fuel.
    G15258132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

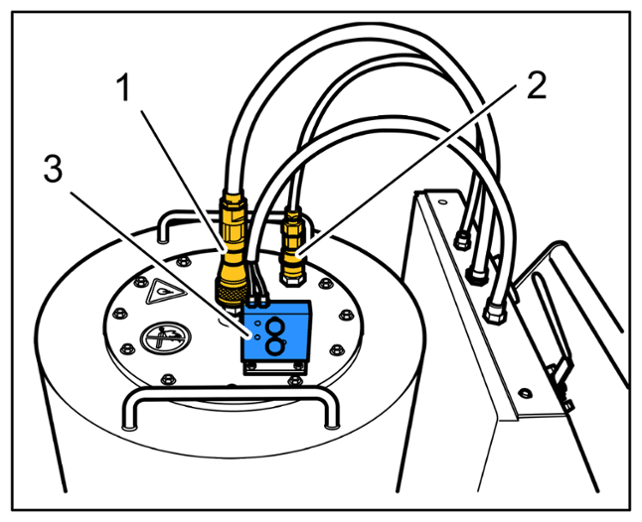

    Fuel transfer system

    1. 1.1  Connect the fuel hose -1-  to the changeover tank.
    2. 1.2  Connect the venting device (transparent hose) -2-  .
    3. 1.3  Position the pneumatic stop switch -3-  on the tank and secure with two knurled nuts.
    4. 1.4  Then connect the suction hose to the connection -1-  .
  2. Connect the earth cable.
    1. 2.1 For both units, the earth cable must be connected to the ground point on the vehicle while working!
  3. > VAS 5190A - Fuel extractor

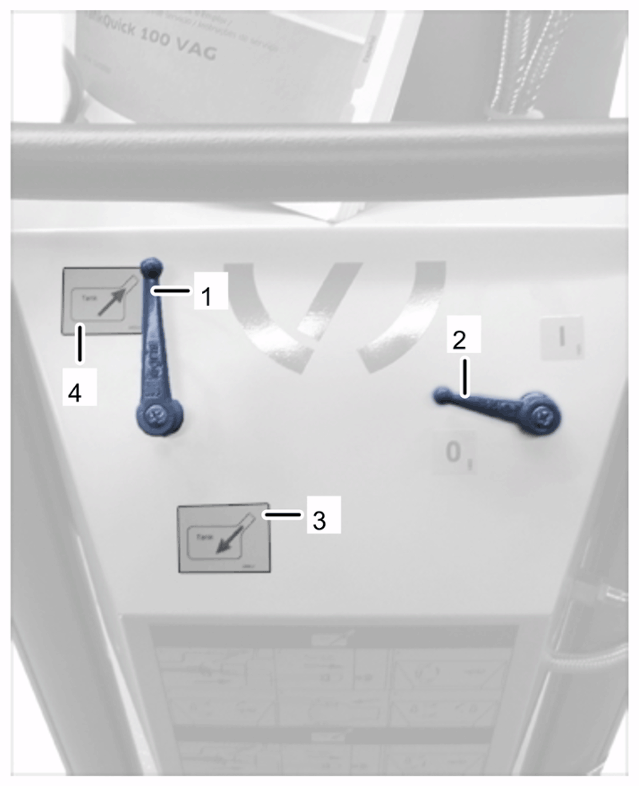

    G15258133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Using VAS 5190 A

    1. 3.1  Move lever -1-  to Filling -3-  or Pumping out -4-  position.
    2. 3.2  Switch the pump on or off using lever -2-  .
