Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Only for cylinder bank 2:
1. 1.1 Install intake hall sender.
  > 283919 REMOVING AND INSTALLING HALL SENDER (V8 BITURBO)
2. 1.2 Install guide for oil dipstick.
3. 1.3 Install brake booster vacuum pump.
  > 477619 REMOVING AND INSTALLING BRAKE BOOSTER VACUUM PUMP (V8 BITURBO)
On the relevant side:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

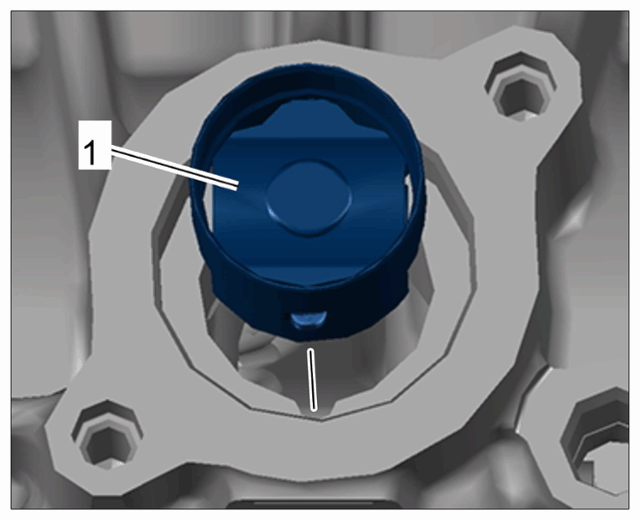

Tappets for high-pressure pump
1. 2.1 Install camshaft actuator.
  1. > 158419 REMOVING AND INSTALLING CAMSHAFT ACTUATOR (INCLUDES SETTING TIMING)
2. 2.2 Install upper chain housing cover.
  > 153319 REMOVING AND INSTALLING UPPER CHAIN HOUSING COVER (V8 BITURBO)
3. 2.3 Install fuel injectors.
  > 244019 REMOVING AND INSTALLING FUEL INJECTOR
4. 2.4 Install solenoid hydraulic valve for valve lift adjustment.
  > 155519 REMOVING AND INSTALLING SOLENOID HYDRAULIC VALVE FOR VALVE LIFT ADJUSTMENT (V8 BITURBO)
5. 2.5 Install high-pressure pump and move tappets -1- into installation position.
  > 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP (V8 BITURBO)
6. 2.6 Install fuel collection pipe.
  > 243019 REMOVING AND INSTALLING FUEL COLLECTION PIPE (V8 BITURBO)
7. 2.7 Fit upper heat insulation.
8. 2.8 Install spark plugs.
  > 282020 REMOVING AND INSTALLING IGNITION COILS (V8 BITURBO)
9. 2.9 Install tank vent valve with lines.
  > 202319 REMOVING AND INSTALLING TANK VENT VALVE (V8 BITURBO)
10. 2.10 Install oil separator.
  > 105519 REMOVING AND INSTALLING OIL SEPARATOR (V8 BITURBO)
Clip in engine wire harness at the relevant points and connect cable plugs.
> 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS
Installing engine.
> 100119 REMOVING AND INSTALLING ENGINE
