Removing Cylinder Head Cover (Cylinder Bank 1)

Information

The > T40331 - camshaft clamp  must be fitted before removal and installation.

> WM, 158419 REMOVING AND INSTALLING CAMSHAFT ACTUATOR (INCLUDES SETTING TIMING)

1. Remove cylinder head cover -25-  .

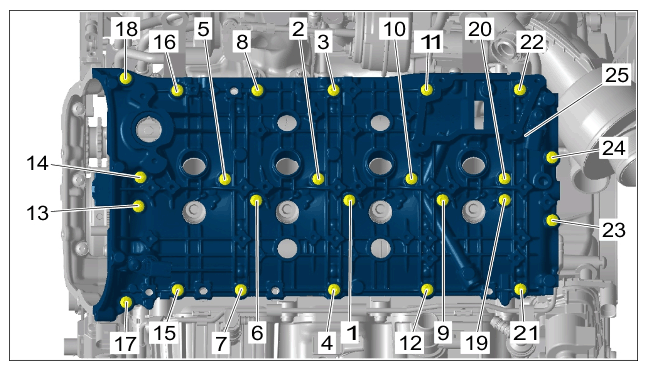

   Fig 1: Cylinder Head Cover Screws Loosening Sequence (Cylinder Bank 1)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for cylinder head cover (cylinder bank 1)

   1. 1.1  Unscrew screws in the sequence -24 to 1-  .
   2. 1.2  Remove cylinder head cover -25-  and set it down on a clean surface.
      1. 1.2.1  Replace seal.
