Installing Cylinder Head Cover (Cylinder Bank 1)

Information

Before fitting the cylinder head cover, check that the rocker arms are aligned correctly.

1. Replace seal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

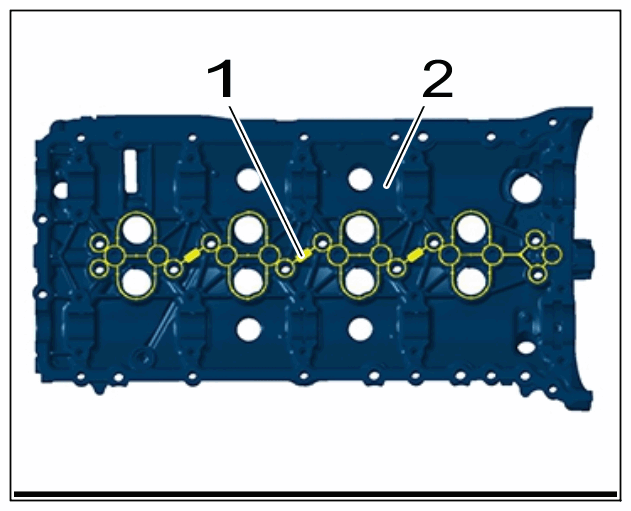

   Seal on cylinder head cover (cylinder bank 1)

   1. 1.1  Remove old seal.
   2. 1.2  Clean sealing face on cylinder head cover -2-  to remove oil and grease.
   3. 1.3  Insert new seal -1-  in the cylinder head cover -2-  .

   Information

   Fitting and sealing components using liquid sealant.

   • Clean sealing faces to remove all traces of residual sealant.
   • Sealing faces must be free of grease and oil.
   • Clean sealing faces with primer Loctite 7515.
   • Use liquid sealant Loctite 5970-BM.

   Information

   Install the cylinder head cover within five minutes of applying the liquid sealant.

2. Apply liquid sealant Loctite 5970-BM -1-  on the cylinder head -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

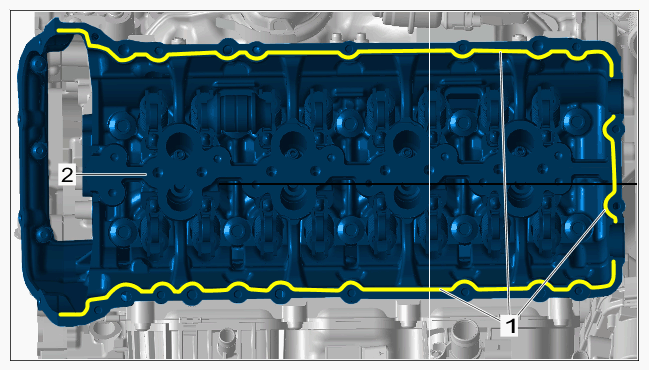

   Applying sealant on cylinder head (cylinder bank 1)

   Information

   Before fitting the cylinder head cover, check that the rocker arms are aligned correctly.

3. Align cylinder head cover -1-  using > T40116 - locating pins-2-  and fit it on the cylinder head.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

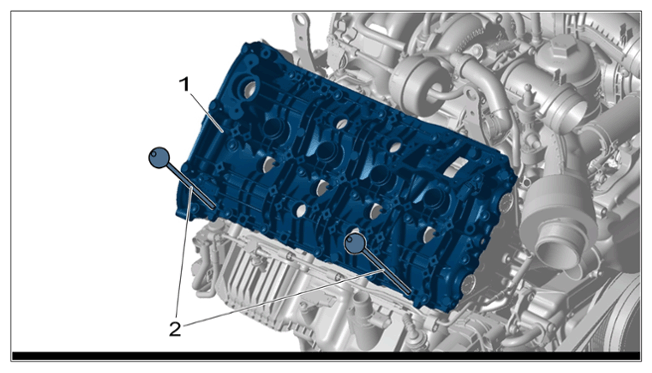

   Cylinder head cover with locating pins (cylinder bank 1)

4. Secure cylinder head cover -25-  .

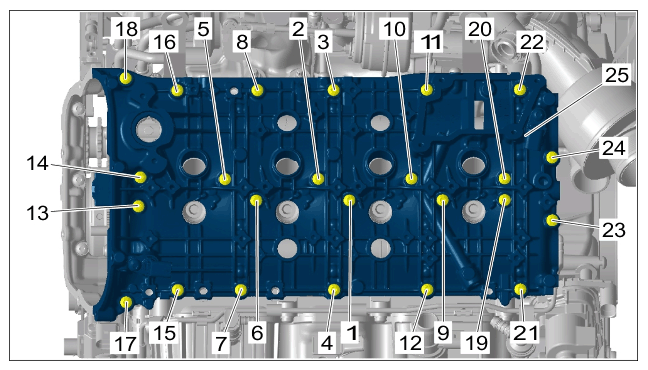

   Fig 1: Cylinder Head Cover Screws Tightening Sequence (Cylinder Bank 1)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for cylinder head cover (cylinder bank 1)

   1. 4.1  Screw in screws uniformly in the sequence -1 to 24-  until they are touching the cylinder head cover -25-  .
   2. 4.2  Tighten screws in the sequence -1 to 24-  .

      > Initial tightening 9 Nm (6.5 ftlb.)

      > Final tightening 9 Nm (6.5 ftlb.)

   3. 4.3  > T40116 - Locating pins  must now be pulled off.
   4. 4.4  Close off bearing tunnels with rubber caps.
