General Information
Information
The guide plate VAS 5161A/38 must be modified for cylinders 4 and cylinder 8.

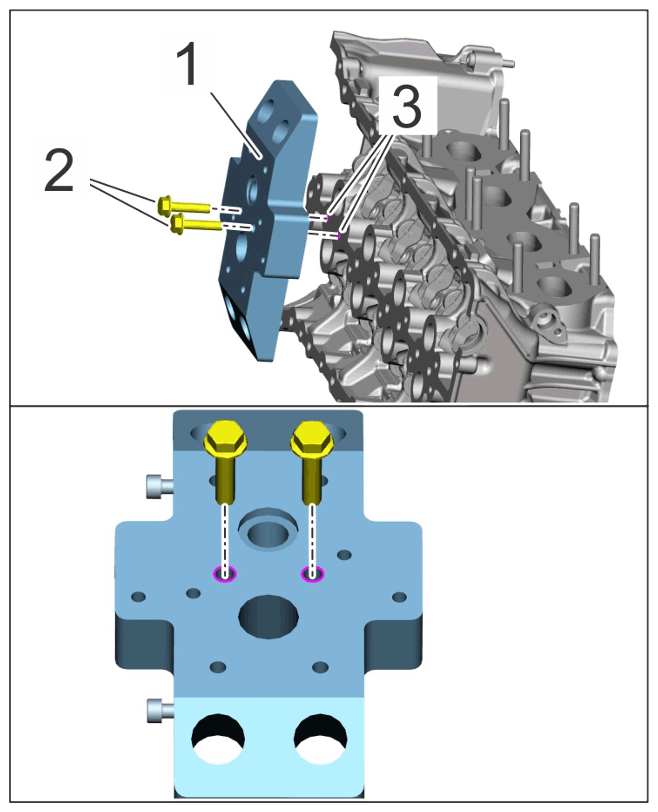

To do this, screw two M8 screws into the guide plate VAS 5161A/38 as shown.
The screws must project by max. 5 mm at the bottom.
The projection of the screws is fitted at the oil ducts.
The next steps are described in the appropriate service information.
The screws in the guide plate VAS 5161A/38 can remain fitted for working on the other cylinders.
Accessory for VAS 5161A/38:
| 1 | Guide plate VAS 5161A/38 |
| 2 | Screws, M8 x 35 (Part No.: N 108 063 01) |
| 3 | Oil ducts |
Information

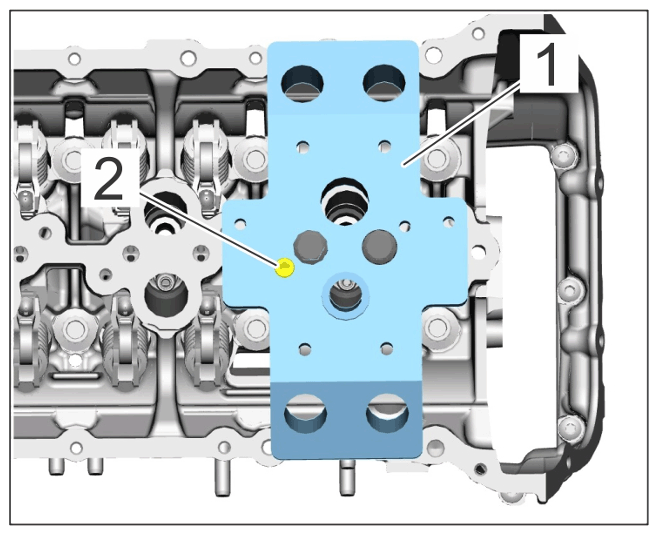

On cylinders 4 and 8, the guide plate VAS 5161A/38 can -1- only be secured -2- to the cylinder head with a screw.
VAS 5161A/38
Information

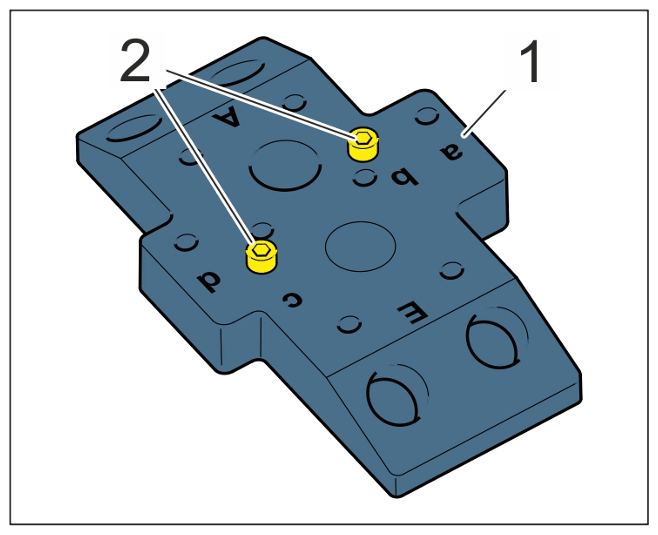

In the > VAS 5161A/38 - guide plate-1- there are four bore holes -A, B, C, D- for mounting on the cylinder head.
Depending on the installation situation, observe the use of the bores and secure the > VAS 5161A/38 - guide plate with the supplied screws, M5x40 -2- .
Guide plate VAS 5161A/43 with screws
| E | Intake side |
| A | Outlet side |
Information

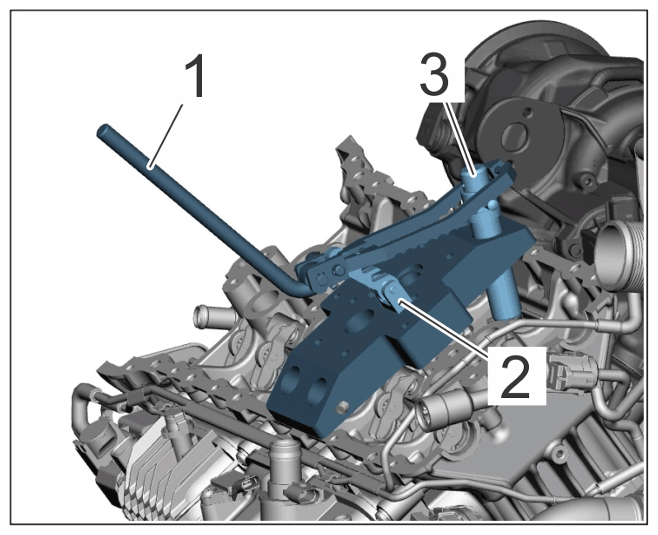

For the exhaust side valve, attach the > VAS 5161A - valve keeper tool as shown.
Valve springs exhaust side
| 1 | Pressure cable VAS 5161/2 |
| 2 | Retainer VAS 5161/6 with threaded studs VAS 5161/5 |
| 3 | Assembly cartridge VAS 5161/8A |

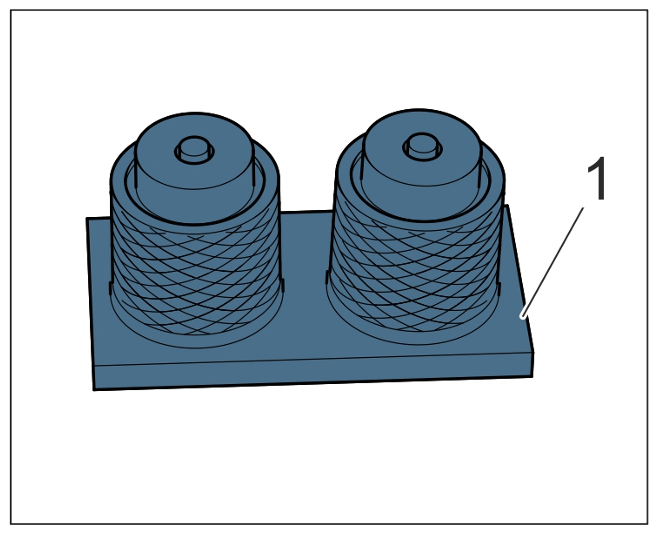

- If the valve keys were removed from the assembly cartridge, they must first be inserted into the insertion device VAS 5161/18 -1- from the tool kit > VAS 5161A - Removal and installation device for valve keys .
