Removing And Installing Valve Springs
WARNING: This page is about a different variant/trim than selected.

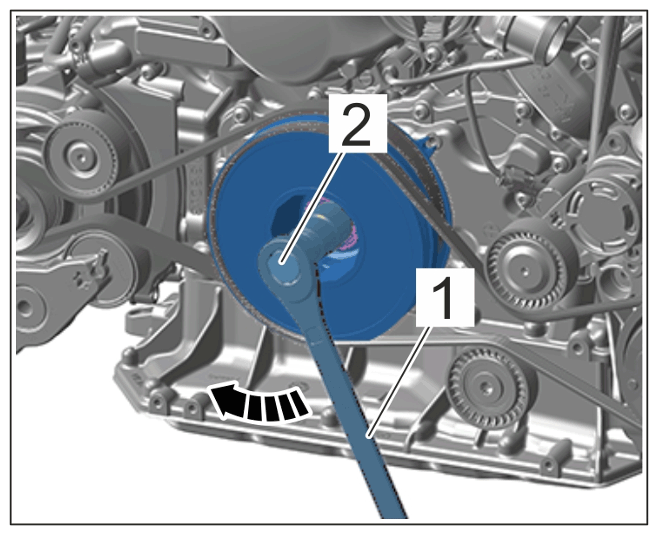

- Turn the crankshaft clockwise using > T40263 - wrench a/f 21-1-
and > T40314 - adapter-2-
on the belt pulley until the piston of the relevant cylinder is at the bottom dead center (BDC) position.
Turning the engine

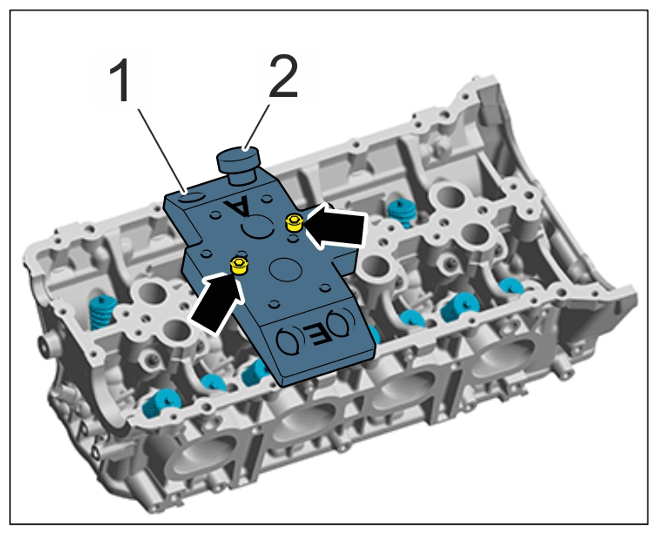

- > VAS 5161A/38 - Guide plate-1-
must now be secured on the cylinder head.
- 2.1
> VAS 5161A/38 - Guide plate-1-
on the cylinder head must be aligned above the relevant combustion chamber.
Observe markings A-Outlet side/E - Intake side while doing this.
- 2.2 Tighten screws -Arrows- with > Tightening torque 9 Nm (6.5 ftlb.) .
- 2.3 Fit punch VAS 5161/3A -2- from tool set > VAS 5161A - Removal and installation device for valve keys on the valve spring seat and loosen any tight valve keys by tapping them with a plastic hammer.
Guide plate on cylinder head
NOTIFICATION
Engine damage
- Risk of damage to valves due to incorrect handling
- → To prevent the valve from falling into the cylinder, the guide plate and sealing pins must not be unscrewed.
- → Overpressure in the cylinder must be kept at least 6 bar.
- → Cover passages and openings from the cylinder head into the crankcase.
- 2.1
> VAS 5161A/38 - Guide plate-1-
on the cylinder head must be aligned above the relevant combustion chamber.
- Build up overpressure in the relevant combustion chamber.

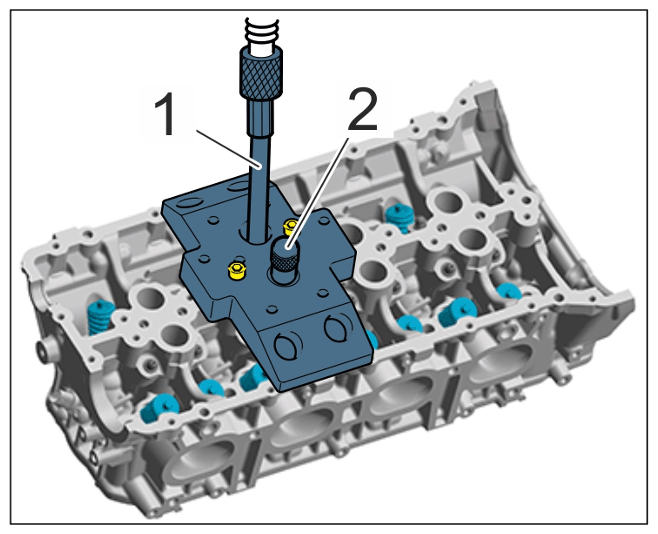

- 3.1 Screw sealing pin VAS 5161/10 -2- from tool kit > VAS 5161A - Removal and installation device for valve keys into the > VAS 5161A/38 - guide plate .
- 3.2 Screw the hose adapter > T40012 - adapter-1- hand-tight into the respective spark plug thread.
- 3.3
Connect compressed air to the hose adapter > T40012 - adapter-1-
.
- 3.3.1 Minimum pressure: 6 bar
Hose adapter and guide plate on cylinder head
- Remove valve springs using > VAS 5161A - removal and installation device for valve keys
.

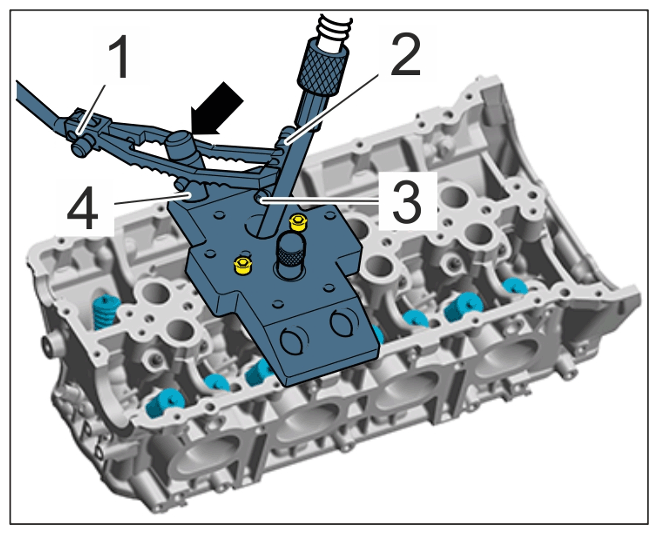

- 4.1 Screw retainer VAS 5161/6 -2- with guide fork and M8 threaded bolt VAS 5161/5 -3- into the guide plate.
- 4.2 Insert assembly cartridge VAS 5161/8A -4- into the bore over the valve spring to be removed.
- 4.3 Engage pressure fork VAS 5161/2 -1- in the retainer VAS 5161/6 -2- and press assembly cartridge down.
- 4.4 At the same time, turn the knurled screw -Arrow- on the assembly cartridge clockwise until the tips engage in the valve collets.
- 4.5 Turn the knurled screw -Arrow- back and forth to press the valve collets apart and capture them in the assembly cartridge. The knurled screw slips as far as it will go into the assembly cartridge.
- 4.6 Relieve pressure on pressure fork VAS 5161/2 -1- and remove assembly cartridge VAS 5161/8A -4- .
- Remove valve spring with valve-spring plate and mark installation position.
- Insert valve springs and valve-spring plates in their original position. Observe installation positions.
- Install valve keys.
- 7.1 Insert assembly cartridge VAS 5161/8A -4- into the > VAS 5161A/38 - guide plate .
- 7.2 Press down the pressure fork VAS 5161/2 -1- , pull the knurled screw -Arrow- on the assembly cartridge VAS 5161/8A -4- upwards by turning it to the left and to the right, this will insert the valve cone pieces.
- 7.3 Relieve pressure on pressure fork VAS 5161/2 -1- whilst pulling on the knurled screw.
- 7.4
Repeat the procedure on each valve.
Installation of the valve keys
- When all valves are secured again, disconnect the compressed air connection and unscrew > T40012 - adapter .
- Do the same on the other cylinders. When all valve-stem seals have been replaced, remove the special tools from the cylinder head.
