Removing Valve Lifters (Hydraulic Tappets)

Information

• Observe the most important working regulations and warning notes

  > The most important working regulations and warning notes

1. If you intend to re-use hydraulic tappets, safety clips and valve levers:

   Mark allocation of the components using a colored marker.

2. Remove hydraulic tappet -1-  and valve lever -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

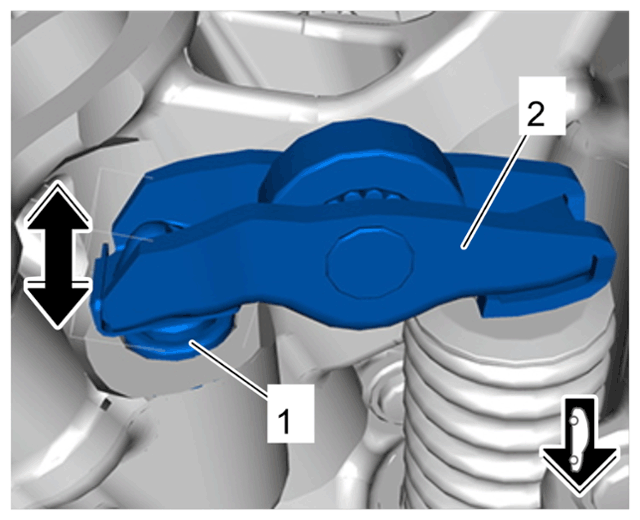

   Hydraulic tappet with valve lever in cylinder head

   1. 2.1  Take hydraulic tappet -1-  with valve lever -2-  out of the cylinder head together.

      Information

      If you intend to re-use hydraulic tappets and valve levers, check that the components are not damaged.

   2. 2.2  Check component allocation and check that all components are fitted.

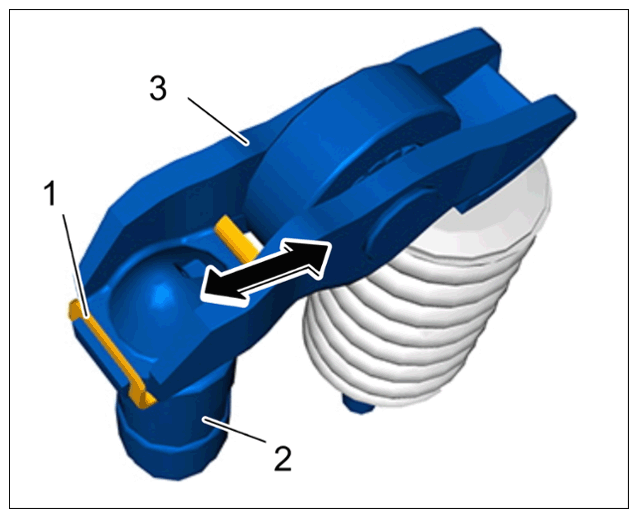

3. Remove hydraulic tappet -2-  from valve lever -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hydraulic tappet

   1. 3.1  Open safety clip -1-  carefully.
   2. 3.2  Remove safety clip -1-  and hydraulic tappet -2-  .
