Valve Lifters (Hydraulic Tappets)

Information

• Observe the most important working regulations and warning notes

  > The most important working regulations and warning notes

1. Fit hydraulic tappet -2-  on valve lever -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

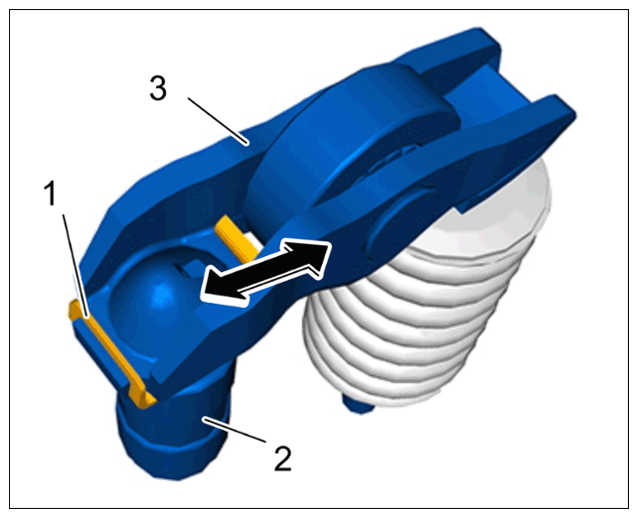

   Hydraulic tappet

   1. 1.1  Position hydraulic tappet -2-  and safety clip -1-  on valve lever -3-  .
   2. 1.2  Insert hydraulic tappet -2-  and hook safety clip -1-  into valve lever -3-  .

      Check that the safety clip -1-  is fitted correctly.

2. Fit hydraulic tappet -1-  and valve lever -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

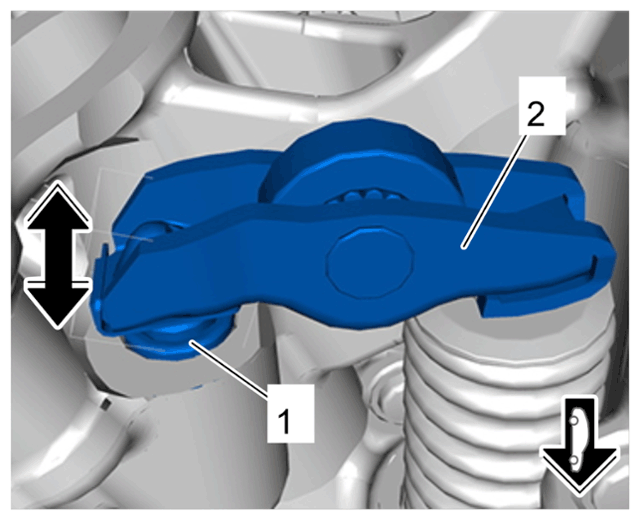

   Hydraulic tappet with valve lever in cylinder head

   1. 2.1  Oil hydraulic tappet -1-  and valve lever -2-  .
   2. 2.2  Insert hydraulic tappet -1-  with the valve lever -2-  into the cylinder head together.
   3. 2.3  Position the pressure face of the valve lever -2-  on the valve pressure face.
3. After you have installed all hydraulic tappets and valve levers, check that they are fitted correctly.
   1. 3.1  In particular, check that the safety clip is fitted correctly and that the pressure faces of the valve lever and valve are positioned correctly.
