Removing Solenoid Hydraulic Valve For Valve Lift Adjustment (Cylinder 5)

WARNING: This page is about a different variant/trim than selected.

Only for intake side of cylinder 5:

  1. Lift up molded part -1-  .

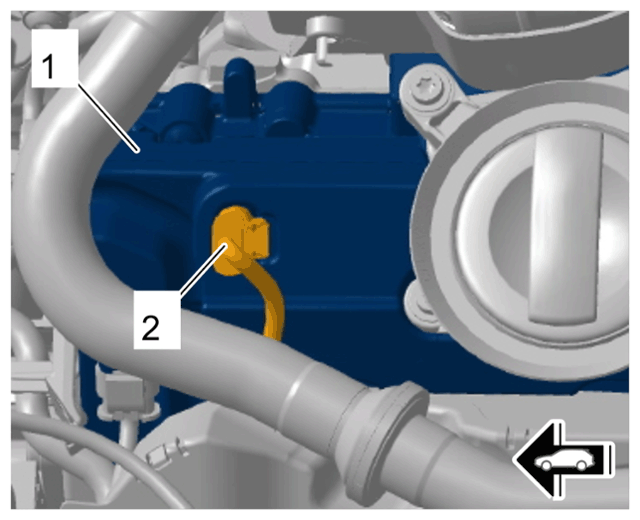

    G15211545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intake side of cylinder 5

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Lift up molded part -1-  for easier access to the solenoid hydraulic valve for valve lift adjustment.
  2. Unscrew screws -1-  and remove solenoid hydraulic valve for valve lift adjustment -2-  .
    G15211546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Solenoid hydraulic valve for valve lift adjustment

    Only for outlet side of cylinder 5:

  3. Lift up molded part -2-  .

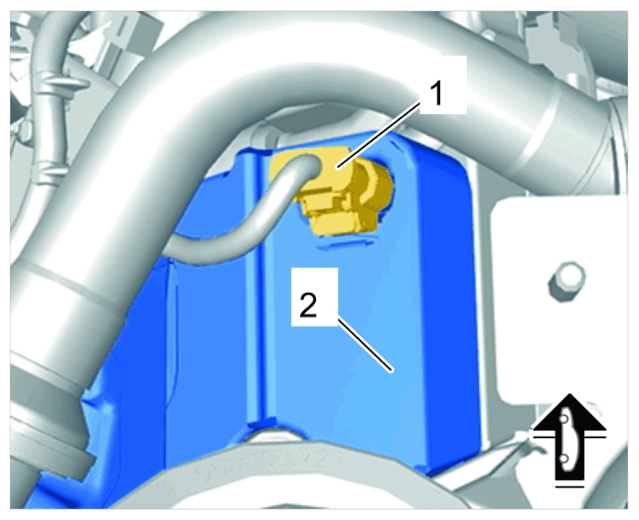

    G15211547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outlet side of cylinder 5

    1. 3.1  Release and disconnect electric plug connection -1-  .
    2. 3.2  Lift up molded part -2-  for easier access to the solenoid hydraulic valve for valve lift adjustment.
  4. Unscrew screws -1-  and remove solenoid hydraulic valve for valve lift adjustment -2-  .

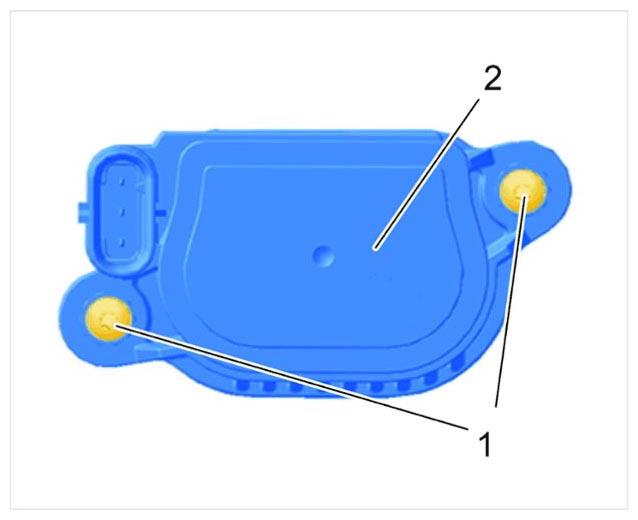

    G15211548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Solenoid hydraulic valve for valve lift adjustment
