Removing Solenoid Hydraulic Valve For Valve Lift Adjustment (Cylinder 3)

Only for intake side of cylinder 3:

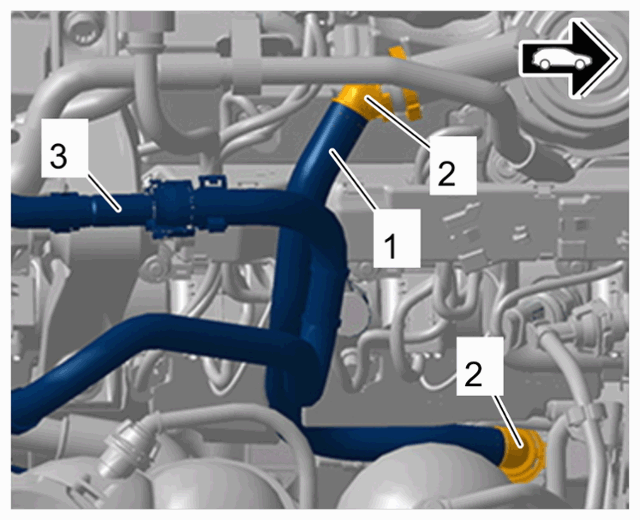

1. Remove partial load vent line for oil mist separator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Partial load vent line for oil mist separator

   1. 1.1  Press release buttons on both sides and loosen adapter -2-  .
   2. 1.2  Carefully move line -3-  aside.
   3. 1.3  Remove partial load vent line for oil mist separator -1-  .
2. Only for intake side of cylinder 3:

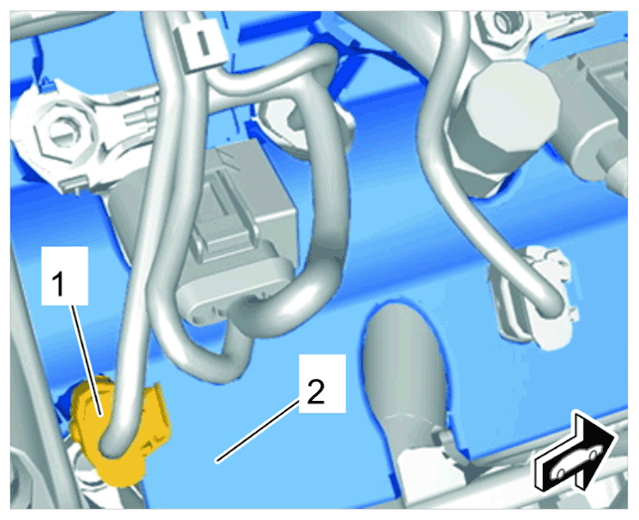

   Lift up molded part -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Intake side of cylinder 3

   1. 2.1  Release and disconnect electric plug connection -1-  .
   2. 2.2  Lift up molded part -2-  for easier access to the solenoid hydraulic valve for valve lift adjustment.
3. Only for outlet side of cylinder 3:

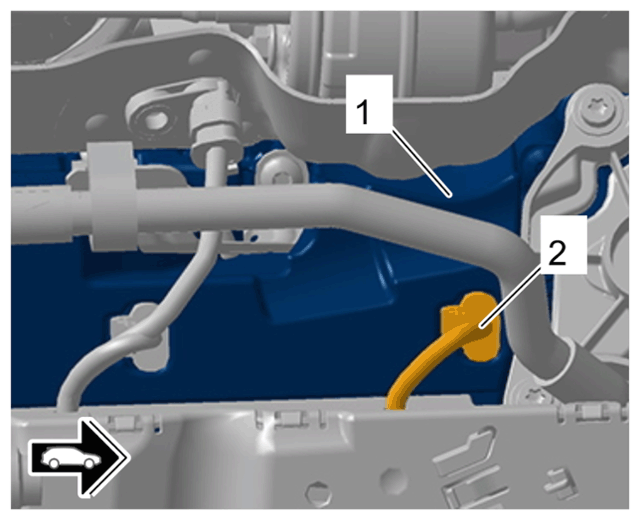

   Lift up molded part -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outlet side of cylinder 3

   1. 3.1  Release and disconnect electric plug connection -2-  .
   2. 3.2  Lift up molded part -1-  for easier access to the solenoid hydraulic valve for valve lift adjustment.

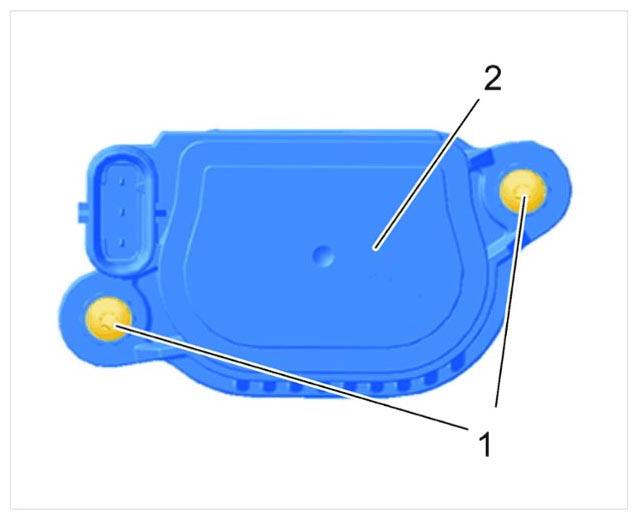

4. Unscrew screws -1-  and remove solenoid hydraulic valve for valve lift adjustment -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid hydraulic valve for valve lift adjustment
