Removing Solenoid Hydraulic Valve For Valve Lift Adjustment (Cylinder 2)

Only for intake side of cylinder 2:

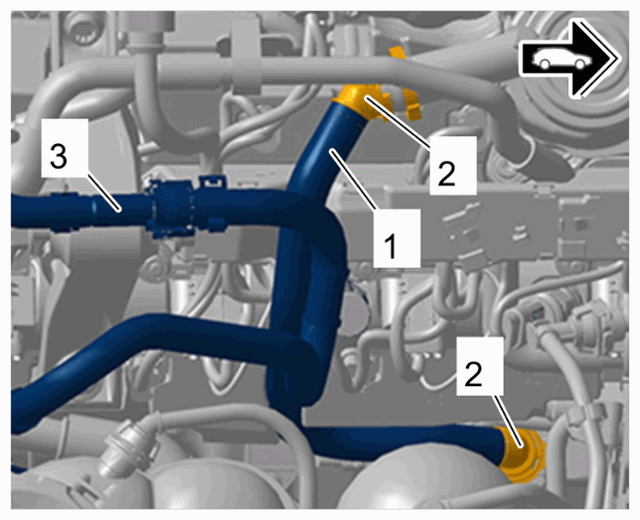

1. Remove line for oil mist separator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil separator line

   1. 1.1  Press release buttons on both sides and loosen adapter -2-  .
   2. 1.2  Carefully move line -3-  aside.
   3. 1.3  Remove line for oil mist separator -1-  .

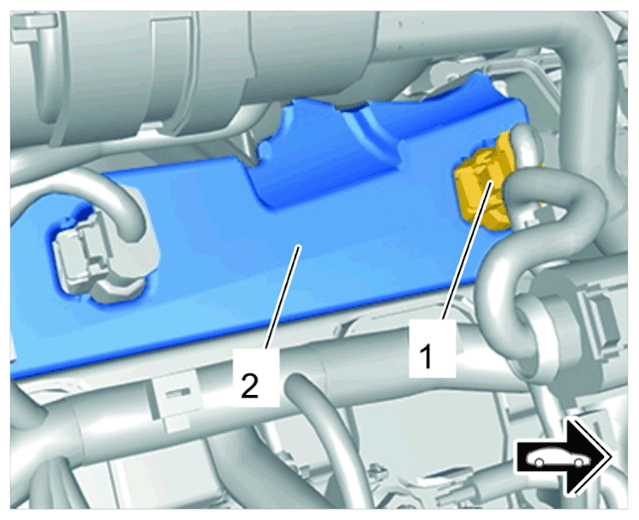

2. Lift up molded part -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Intake side of cylinder 2

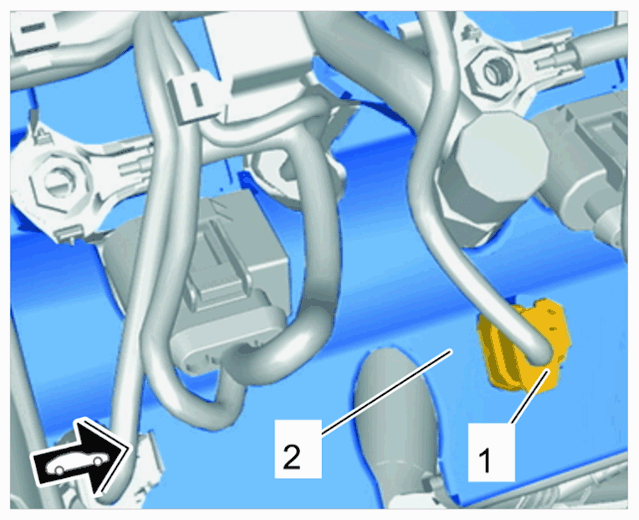

   1. 2.1  Release and disconnect electric plug connection -1-  .
   2. 2.2  Lift up molded part -2-  for easier access to the solenoid hydraulic valve for valve lift adjustment.

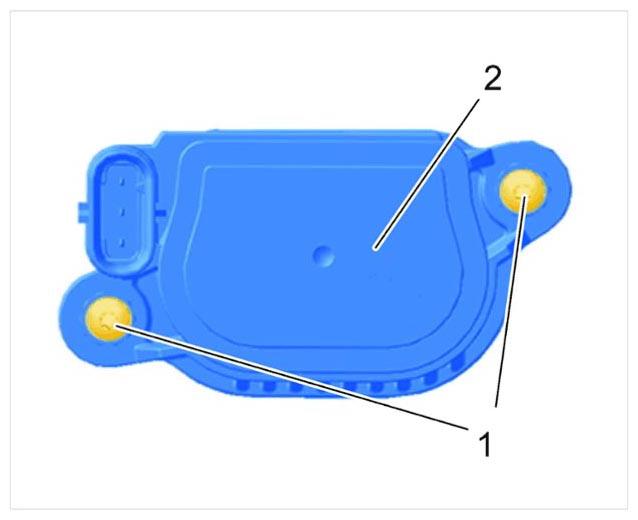

3. Unscrew screws -1-  and remove solenoid hydraulic valve for valve lift adjustment -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid hydraulic valve for valve lift adjustment

   Only for outlet side of cylinder 2:

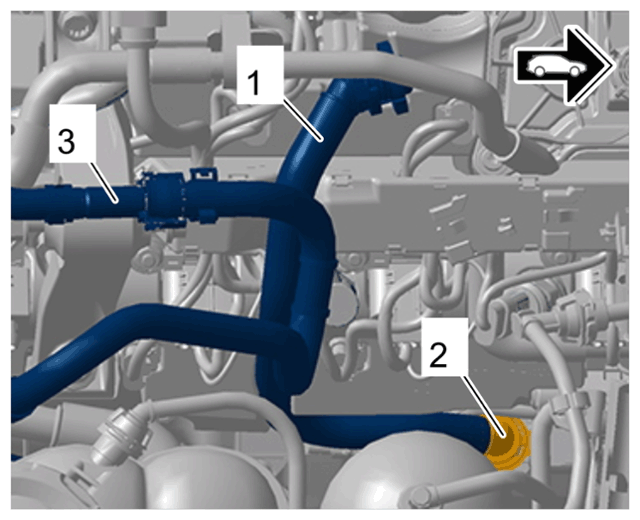

4. Remove partial load vent line for oil mist separator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Partial load vent line for oil mist separator

   1. 4.1  Press release buttons on both sides and loosen a lapter -2-  .
   2. 4.2  Carefully move line -3-  aside.
   3. 4.3  Remove partial load vent line for oil mist separator -1-  .
5. Lift up molded part -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outlet side of cylinder 2

   1. 5.1  Release and disconnect electric plug connection -1-  .
   2. 5.2  Lift up molded part -2-  for easier access to the solenoid hydraulic valve for valve lift adjustment.
6. Unscrew screws -1-  and remove solenoid hydraulic valve for valve lift adjustment -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid hydraulic valve for valve lift adjustment
