Removing Guide And Tensioning Rails For Cylinder Bank 2

WARNING: This page is about a different variant/trim than selected.
  1. Remove guide and tensioning rails -1 and 2-  .

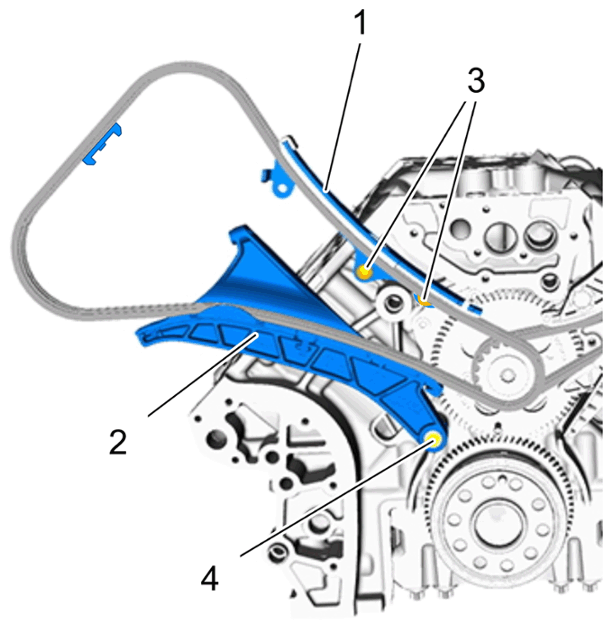

    G15211531Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guide and tensioning rails for cylinders 5 to 8

    1. 1.1  Remove timing chain.
    2. 1.2  Remove guide rail -1-  .
      1. 1.2.1  Unscrew and remove screws -3-  .
      2. 1.2.2  Remove guide rail -1-  .
    3. 1.3  Remove tensioning rail -2-  .
      1. 1.3.1  Pull tensioning rail -2-  off the collar axle -4-  .
