Installing Lower Chain Housing Cover

Information

Fitting and sealing components using liquid sealant.

• Clean sealing faces to remove all traces of residual sealant.
• Sealing faces must be free of grease and oil.
• Clean sealing faces with primer Loctite 7515.
• Use liquid sealant Loctite 5970-BM.

Information

Sealing surfaces must be clean and free of grease.

Never use mechanical tools to clean the sealing faces.

Information

Sealant must not get into the threaded bores.

Information

If a cylinder-head gasket is kinked or damaged, it must be replaced.

1. Check cylinder-head gasket for damage and replace it if necessary.
2. Clean sealing faces thoroughly and apply sealant Loctite 5970-BM -1-  .

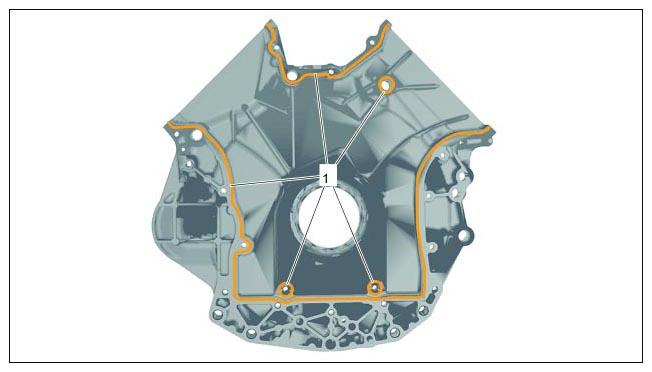

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying sealant on lower chain housing cover

   1. Applying sealant on lower chain housing cover
3. Installing lower chain housing cover.

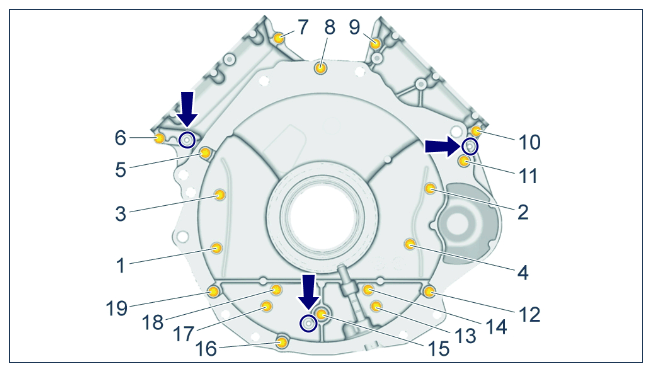

   Fig 1: Lower Chain Housing Cover Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower chain housing cover

   1. 3.1  Carefully fit lower chain housing cover on the crankcase.
   2. 3.2  Screw in screws on lower chain housing cover -1 to.19-  evenly.
4. Screw in and tighten screws securing cylinder head to lower chain housing cover -1-  on both cylinder banks.

   > Tightening torque 10 Nm (7.5 ftlb.)

   > Torque angle 25°

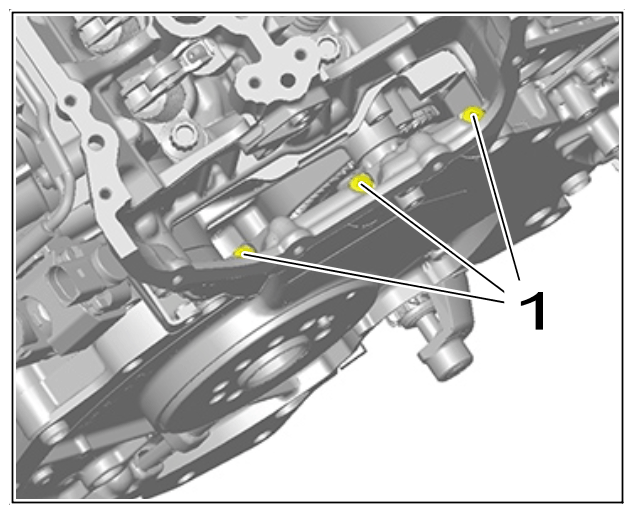

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws securing cylinder head to lower chain housing cover

5. Screw in lower chain housing cover screws evenly and tighten in the sequence -1 to 19-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

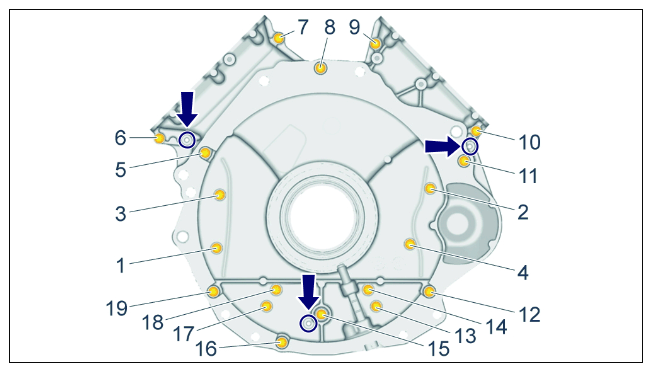

   Fig 2: Lower Chain Housing Cover Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower chain housing cover

6. Installing coolant pipe -1 and 2-  .

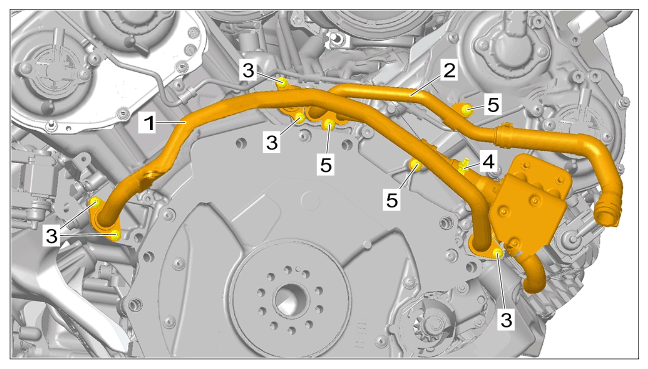

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant pipes on engine/transmission

   1. 6.1  Position coolant pipe -2-  with new  O-rings.
   2. 6.2  Fit spring band clamp -4-  using > VAS 6890 - spring band clamp pliers  .
   3. 6.3  Screw in and tighten screws -5-

      > Tightening torque 9 Nm (6.5 ftlb.)

   4. 6.4  Position coolant pipe -1-  with new O-rings.
   5. 6.5  Screw in and tighten screws -3-  .

      > Tightening torque 9 Nm (6.5 ftlb.)
