Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install cylinder head cover.
> 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER (V8 BITURBO)
Fit staking tools.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

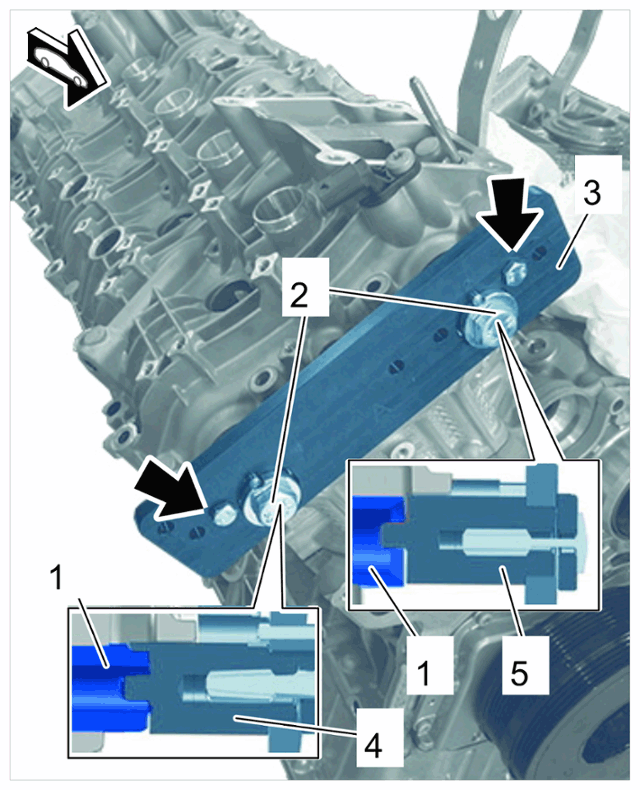

Camshaft clamps
1. 2.1 Align camshafts -1- and insert > T40331 - camshaft clamps /1,/4 and/5 with the inscription "A" facing away from the engine.
2. 2.2 Secure > T40331 - camshaft clamps /1,/4/5 with > T40331 - camshaft clamps /9.
3. 2.3 > T40331 - Camshaft clamps /9 must be screwed in by hand.
4. 2.4 Tighten screws on the camshaft clamps to 9 Nm (6.5 ftlb.).
