Removing Camshafts

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  • → Protect components from dirt and contamination.
  • → Clean or replace dirty components.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Information

• The housings are marked E for intake camshaft and A for outlet camshaft. The housings are numbered consecutively by cylinder.
• The bearing covers are seated very securely in the cylinder head cover because of a dowel sleeve. Carefully jiggle free using a pliers if necessary. Place on a marked, clean surface.
• The bearing covers are allocated to the respective cylinder head cover by a three-digit number. On the cylinder head cover, the last three digits of the clear text marking are relevant for the matching allocation.

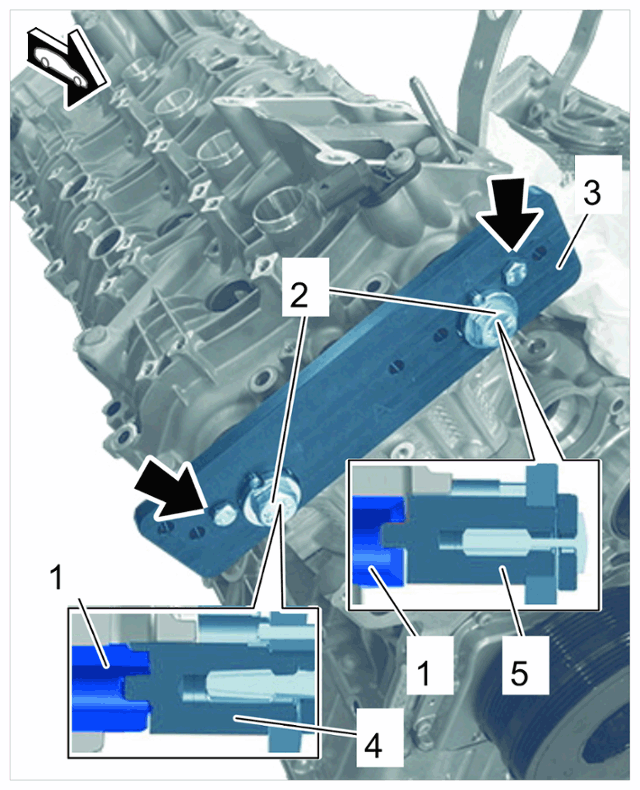

1. Remove locking tools -2 to 5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshaft clamp

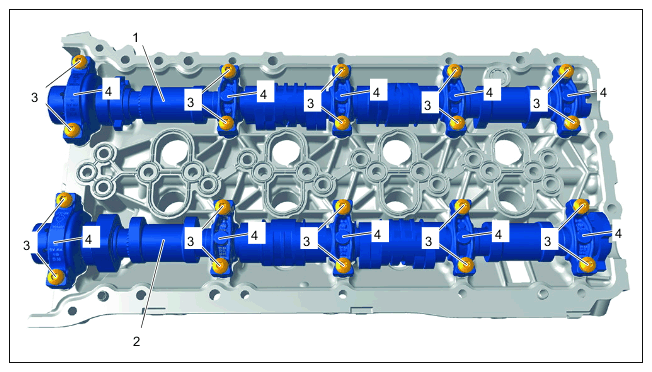

2. Remove camshafts -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshafts

   1. 2.1  Loosen and unscrew screws -3-  slowly and uniformly, one after the other from the outside in.
   2. 2.2  Remove bearing covers -4-  .
      1. 2.2.1  Remove bearing covers -4-  and set them down on a marked, clean surface.
      2. 2.2.2  Remove axial bearing washers and set them down on a marked, clean surface.
   3. 2.3  Remove camshafts -1 and 2-  and set them down on a marked, clean surface.
