Check Brake Booster Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

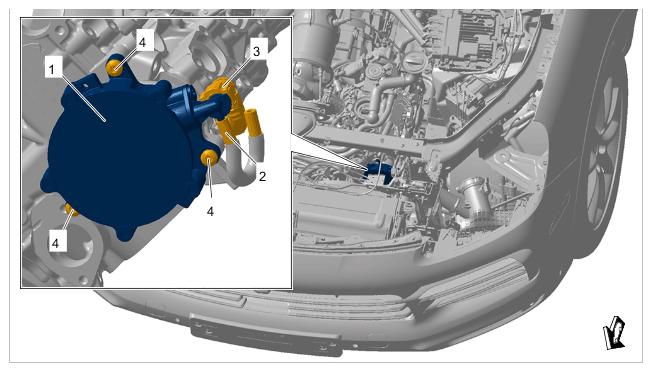

- Pull off vacuum hose -3-
(quick connector) on the -1-
vacuum pump.
Vacuum pump BKV

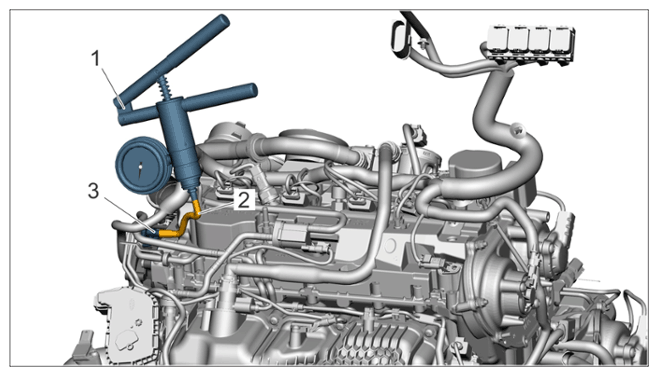

- > VAS 6213 - Connect the hand vacuum pump-1-
with a suitable hose (accessory) -2-
to the vacuum connection -3-
of the vacuum pump.
Information: accessibility to the hose connection is somewhat difficult.
Vacuum pump 6213 on vacuum pump (diagram on V8-engine)
- Check the vacuum pump.
- 3.1 Lift the lever on the vacuum tester to Open (vacuum).
- 3.2 Start the engine and let it run at idle speed at slightly varying revs.
- 3.3 Check for a vacuum of at least 500 mbar or 0.5 bar.
- 3.4 If the vacuum is not maintained, the vacuum pump is defective.
- Replacing defective vacuum pump.
- Remove the tool and hose after the test.
