Removing Rear Brake CALLIPER

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of injury and damage from brake fluid!

Poisonous if swallowed!
Irritation and damage to skin
Avoid contact with paint surfaces
1. → Store brake fluid in suitable, labelled containers only
2. → Wear protective gloves and goggles
3. → In the event of contact (eyes or skin), wash immediately with water
4. → In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

NOTIFICATION

Removal of brake calliper

Paint defects on brake calliper
1. → Proceed with care when setting back the brake pads.
2. → Protect the paintwork on the brake calliper from damage using a suitable cloth.

Information

The core of the warning contact line must not be left exposed! Worn insulation will result in malfunctions.
If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back!

Information

Do not use an impact bolter.

Have suitable aids ready for catching emerging brake fluid.
Have stoppers ready for closing off the line connections.

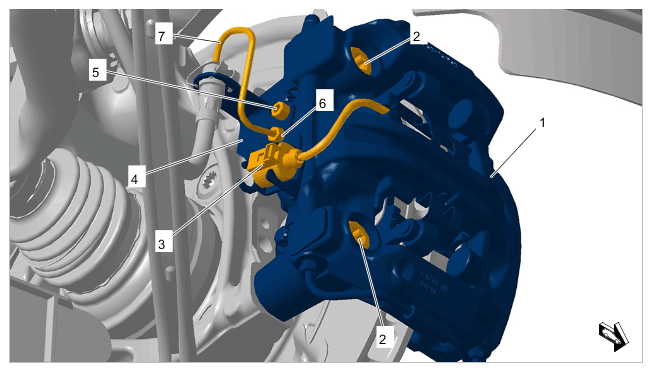

Release electric plug connection for brake pad wear indicator -3- and pull it off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake caliper rear
1. 3.1 Pull off warning contact on the brake pad and disconnect line on the brake calliper.
Information

Collect emerging brake fluid.
Disconnect brake pipe -7- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake caliper rear
1. 4.1 Unscrew screw on brake line bracket -5- and move brake -4- aside.
2. 4.2 Unscrew union nut on brake pipe -6- .
3. 4.3 Pull brake pipe -7- out of brake calliper -1- and set it aside.
4. 4.4 Close off connections using stoppers.
Remove brake calliper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake caliper rear
1. 5.1 Unscrew screws on brake calliper -2- .
2. 5.2 Remove brake calliper -1- .
