Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove drive belt for generator and drive belt for air-conditioning compressor.

    > 137819 REMOVING AND INSTALLING DRIVE BELT (V8 BITURBO)

  2. Remove belt tensioner (air-conditioning compressor).

    > 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)

  3. Prepare tool > T40330 - Brace  .

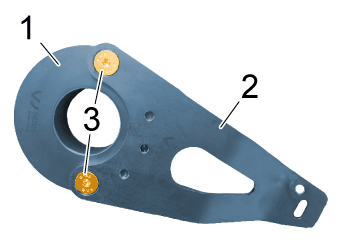

    G15211477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brace

    1. 3.1  Fit adapter T40330/5 (-1-)  on counterhold tool T40330/1 (-2-)  .
    2. 3.2  Screw in and tighten screws -3-  .
