Removing Belt TENSIONER (Generator)
WARNING: This page is about a different variant/trim than selected.
Information
Shown on the Panamera Turbo.

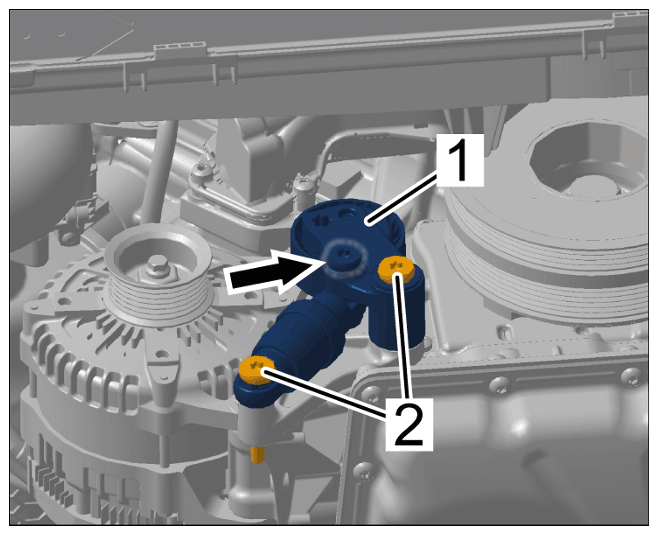

- Unscrew screws -2-
and remove belt tensioner (generator) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws
