Installing Drive Plate

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  • → Protect components from dirt and contamination.
  • → Clean or replace dirty components.

1. Install drive plate -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drive plate

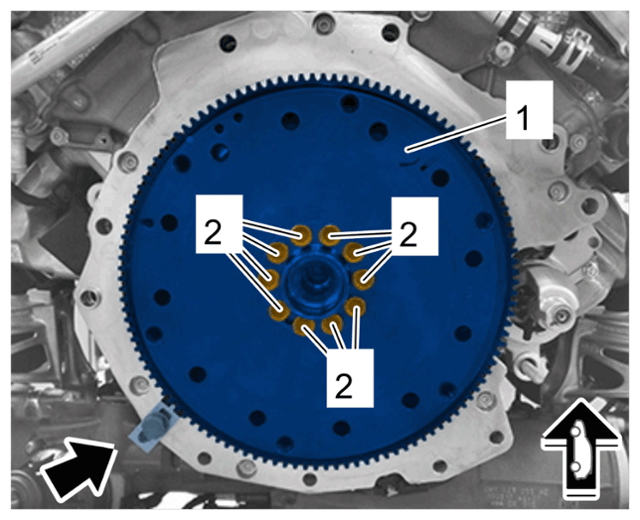

   1. 1.1  Fit drive plate -1-  and check the position of the centring pin while doing so!
   2. 1.2  Secure the drive plate -1-  with a new  screw -2-  .
   3. 1.3  > VAS 6766 - Counterhold tool  must be secured as shown -Arrow-  .
   4. 1.4  Fit the remaining new  screws -2-  and tighten crosswise.

      > pre-tightening 60 Nm (44.3 ftlb.)

      > final-tightening + 90°
