Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Replace crankshaft sealing ring on both sides of the engine.
> Replacing crankshaft-flywheel sealing ring

> Replacing sealing ring for crankshaft pulley
> T40362 - Locking tool (-9-) must be pulled off the bracing gear wheel -10- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

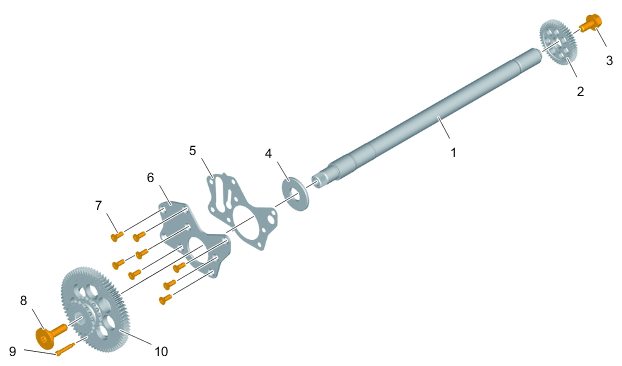

Intermediate shaft
Install pistons.
> Removing and installing pistons
Install crankcase cover at the front.
> Removing and installing front crankcase cover (V8 biturbo)
Remove engine from assembly support.
> 100113 SECURING ENGINE ON ASSEMBLY SUPPORT (V8 BITURBO)
Install the engine.
> Removing and installing engine

> Removing and installing engine (V8 S Hybrid)
Fill in engine oil.
> Draining and filling in engine oil
