Removing Crankshaft

WARNING: This page is about a different variant/trim than selected.
  1. Loosen crankshaft bearing covers -1-  .
    G15211448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

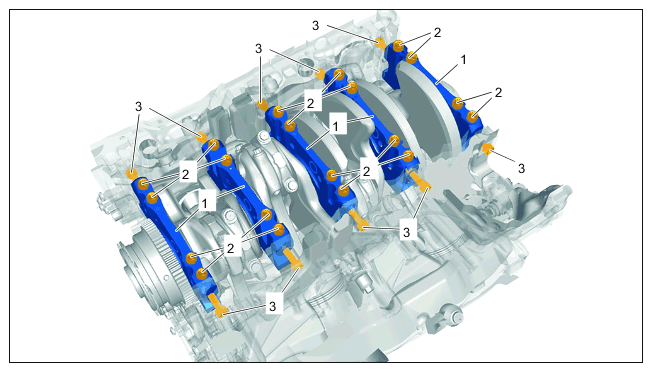

    Crankshaft bearing covers

    1. 1.1  Mark position of crankshaft bearing covers -1-  .
    2. 1.2  Unscrew and remove screws -2 and 3-  .
  2. Remove bearing covers -2-  using > T40332 - puller (-1-)  and > VW771 - multi-purpose tool  and set them down so that they cannot get mixed up.
    G15211449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

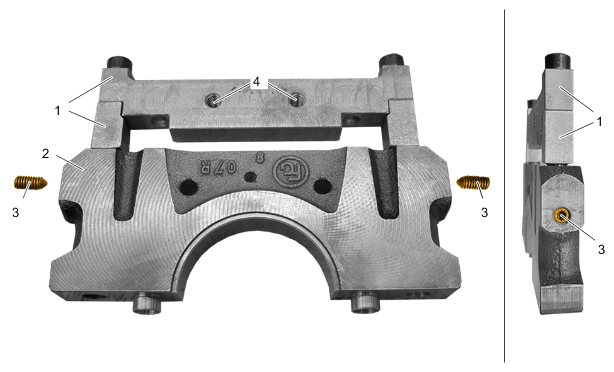

    Using special tool for bearing covers

    1  > T40332 - Puller
    2  Crankshaft bearing covers
    3  Grub screws - for securing the puller on the bearing cover
    4  Threaded bores - for holding the grub screws
  3. Remove crankshaft -1-  .
    G15211450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

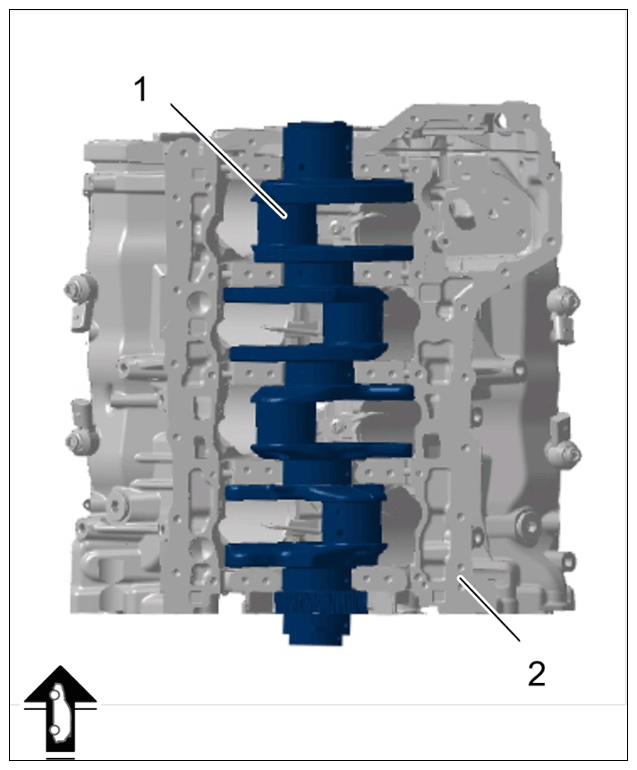

    Crankshaft

    1. 3.1  Remove crankshaft -1-  from the crankcase -2-  with the help of another person and set it down on a clean surface.
    2. 3.2  Remove bearing shells and set them down with the corresponding crankshaft bearing covers so that they cannot get mixed up.
