Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove the engine.
> Removing and installing engine

> Removing and installing engine (V8 S Hybrid)
Secure engine to assembly support.
> 100113 SECURING ENGINE ON ASSEMBLY SUPPORT (V8 BITURBO)
Drain engine oil.
> Draining and filling in engine oil
Remove crankcase cover at the front.
> Removing and installing front crankcase cover (V8 biturbo)
Remove piston.
> Removing and installing pistons

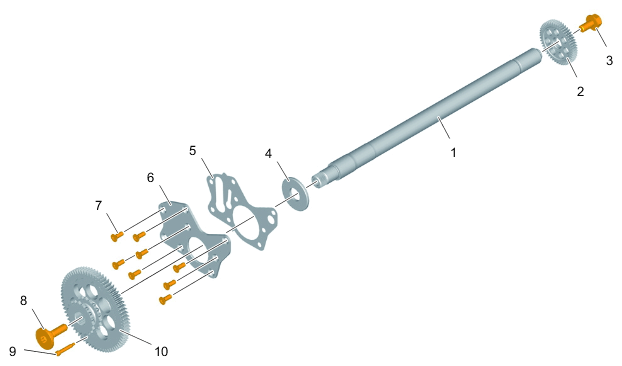

Secure bracing gear wheel -10- using > T40362 - locking tool (-9-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intermediate shaft
