Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cylinder head.

    > Removing and installing cylinder head

  2. Remove oil guide housing.

    > Removing and installing oil guide housing (V6 Turbo)

    > Removing and installing oil guide housing (V8 biturbo)

  3. Remove oil windage tray -2-  .

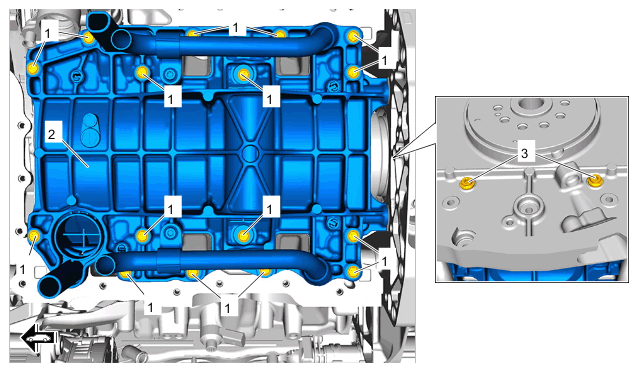

    G15211424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil plate

    1. 3.1  Unscrew screws for oil windage tray -1 and 3-  .
    2. 3.2  Remove oil windage tray -2-  from cylinder block.
