Measuring Piston-Ring Vertical Clearance
WARNING: This page is about a different variant/trim than selected.
- Measure piston-ring vertical clearance.
Piston-ring vertical clearance
- 1.1 Clean the ring groove on the piston.
- 1.2 Fit piston ring on the ring groove of the piston. > Piston-ring vertical clearance

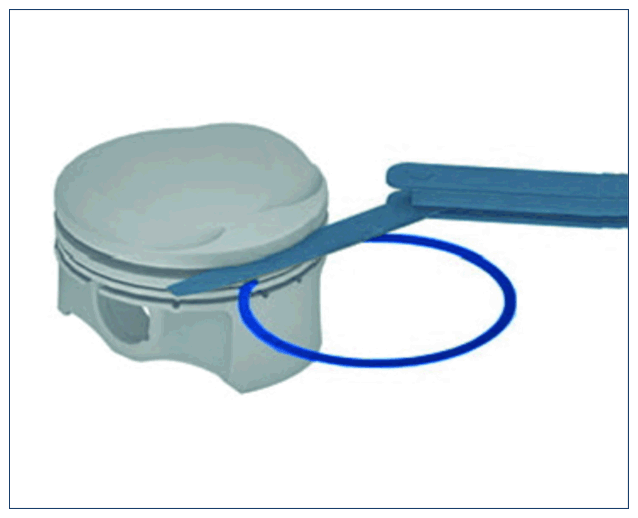

- 1.3 Guide a feeler gauge into the gap between the piston ring and ring groove and read off the value. > Piston-ring vertical clearance
| Piston ring | New in mm | Wear limit in mm |
|---|---|---|
| 1. Compression ring | 0, 03-0, 07 | Not determined |
| 2. Compression ring | 0, 02-0, 06 | Not determined |
| Oil scraper ring | Cannot be measured | - |
