Measuring Cylinder Bore
WARNING: This page is about a different variant/trim than selected.
- Using the cylinder gauge VAS 6078,
take measurements as shown > Diagram for measuring cylinder bore
at three points in the cylinder, crosswise in transverse direction A
and in longitudinal direction B.

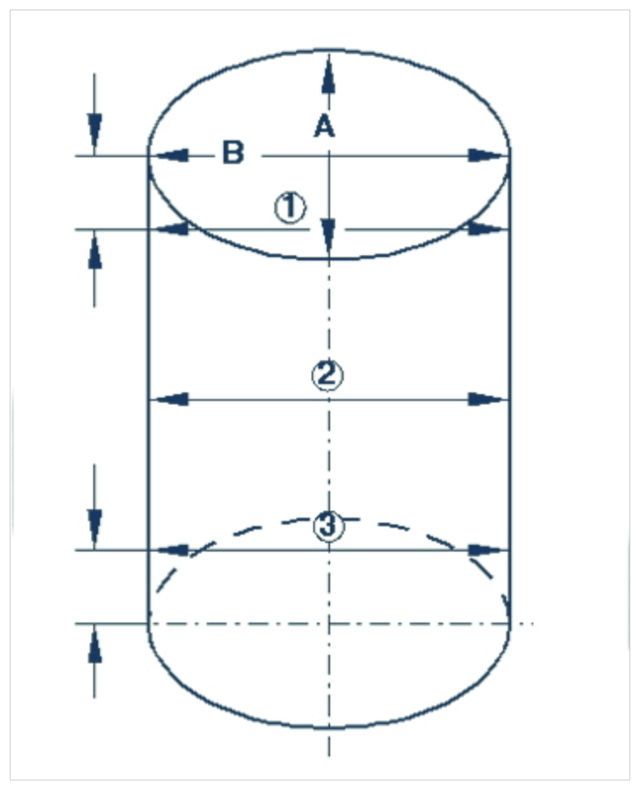

Diagram for measuring cylinder bore
1 20-mm cylinder bore depth 2 60-mm cylinder bore depth 3 105-mm cylinder bore depth
| Cylinder bore | New in mm | Maximum permitted deviation from nominal measurement in mm | Note |
|---|---|---|---|
| Nominal measurement | 86.01 ± 0.005 | Not determined | Measure at 20/60/105-mm cylinder bore depth. |
