WM, 55901530 Adjusting Rear Lid: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Tool denomination	Type	Tool number	Image

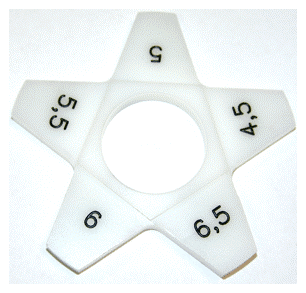

Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6936	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6937	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6938	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1
Rear lid to lid hinge		Tightening torque	12 (9 ftlb.) Nm
Nut securing rear lid hinge to bodyshell		Tightening torque	23 (17 ftlb.) Nm
Screws securing guide wedge to rear lid		Tightening torque	6 (4.5 ftlb.) Nm
Screws securing lower part of rear lid lock to lock carrier		Tightening torque	21 (16 ftlb.) Nm
Roof spoiler centre trim to roof (H40)	Gap	Gap dimension	5.5 mm	+ 1.5 mm,- 0.5 mm
Roof spoiler centre trim to roof (H40)	Offset	Gap dimension	- 1.2 mm	+ 1.5 mm,- 0.5 mm
Rear apron to rear lid - side (H43_0)	Gap	Gap dimension	3.5 mm	+ 1 mm,- 1 mm
Rear apron to rear lid - side (H43_0)	Offset	Gap dimension	0.2 mm	+ 0.8 mm,- 0.8 mm
Rear apron to rear lid - side (H43_1)	Gap	Gap dimension	3.5 mm	+ 1 mm,- 1 mm
Rear apron to rear lid - side (H43_1)	Offset	Gap dimension	0.6 mm	+ 0.6 mm,- 1.1 mm
Rear apron to rear lid - bottom - handle strip (H44_1)	Gap	Gap dimension	4 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_2)	Gap	Gap dimension	4 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_2)	Offset	Gap dimension	0 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_3)	Gap	Gap dimension	4 mm	+ 1 mm,- 1 mm
Rear apron to rear lid, bottom (H44_3)	Offset	Gap dimension	0 mm	+ 1 mm,- 1 mm
