WM, 519419 Removing And Installing Cover For Rear Underbody: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

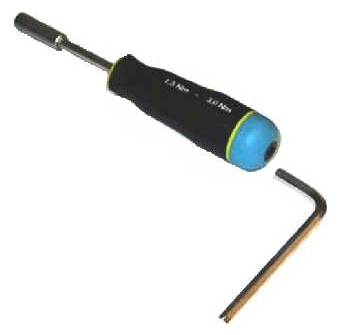

torque screwdriver	Commercially available tool	> Nr.89 Pos.5	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Nut for rear underbody cover, right Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear cover, right	Item 2	Tightening torque	2 (1.5 ftlb.) Nm

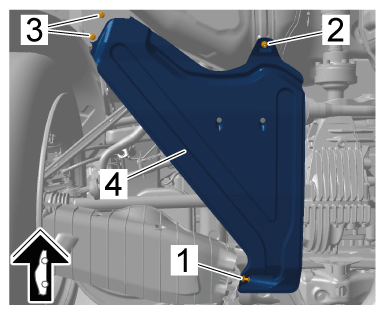

Screw for rear underbody cover, right Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, right	Item 3	Tightening torque	2 (1.5 ftlb.) Nm

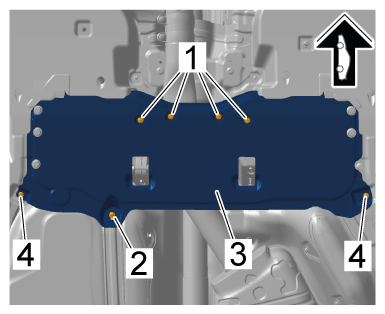

Nut for rear underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear underbody cover, centre	Item 2	Tightening torque	2 (1.5 ftlb.) Nm
Screws for rear underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear underbody cover, centre	Item 4	Tightening torque	3 (2 ftlb.) Nm

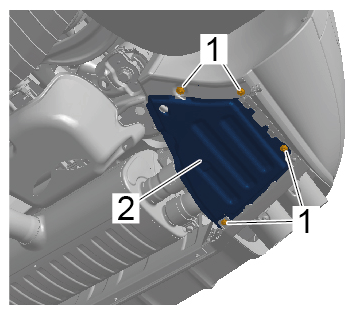

Rear underbody cover to bumper Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear underbody cover, left	Item 1	Tightening torque	3 (2 ftlb.) Nm
