WM, 519319 Removing And Installing Cover For Centre Underbody: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

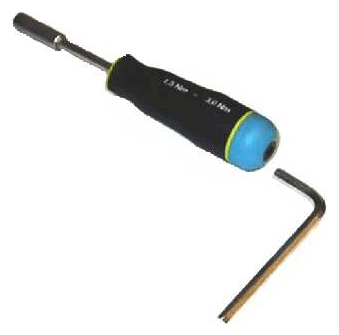

torque screwdriver	Commercially available tool	> Nr.89 Pos.5	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value

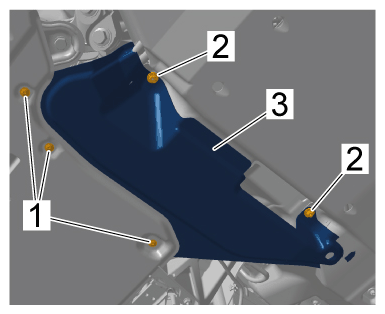

Side section of front underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for front underbody cover	Item 2	Tightening torque	3 (2 ftlb.) Nm

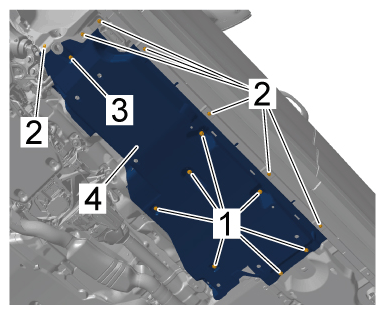

Fastening screws for centre underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for centre underbody	Item 2 and 3	Tightening torque	3 (2 ftlb.) Nm
Fastening nuts for centre underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for centre underbody	Item 1	Tightening torque	2 (1.5 ftlb.) Nm
