WM, 519219 Removing And Installing Cover For Front Underbody: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value

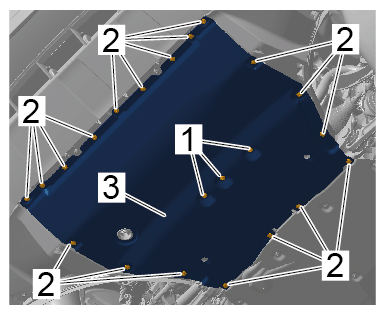

Front section of front underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front section of front underbody cover	Item 2	Tightening torque	3 (2 ftlb.) Nm
Front section of front underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front section of front underbody cover	Item 1	Tightening torque	6 (4.5 ftlb.) Nm

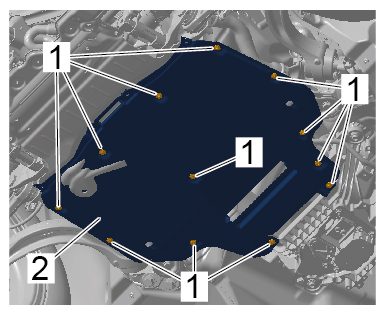

Rear section of front underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear section of front underbody cover	Item 1	Tightening torque	3 (2 ftlb.) Nm

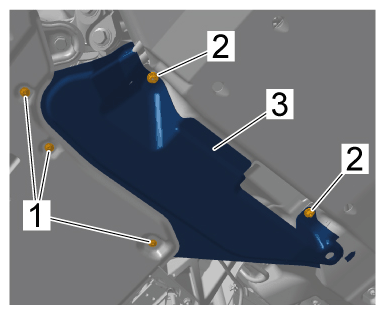

Side section of front underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for front underbody cover	Item 2	Tightening torque	3 (2 ftlb.) Nm
