WM, 516819 Removing And Installing Dashboard Bracket: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value

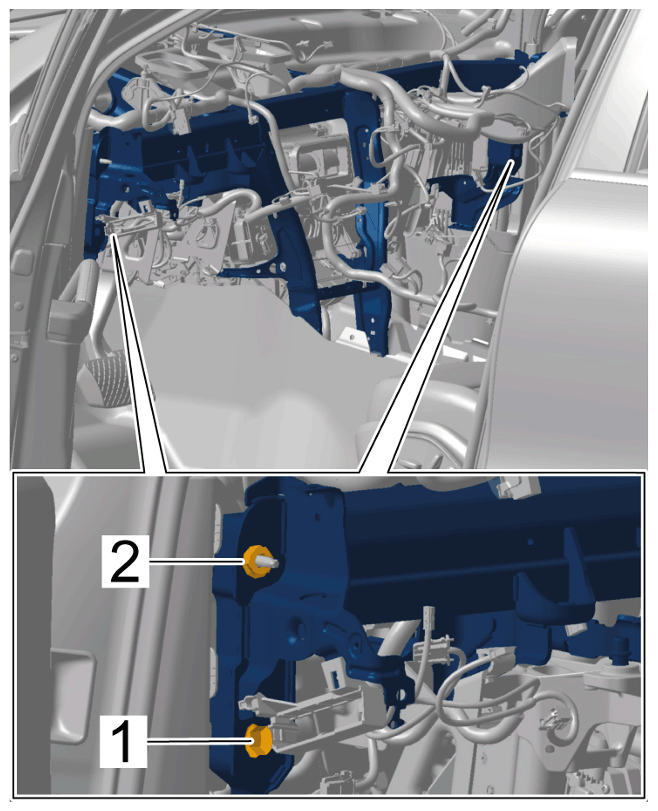

Screws on pillars Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	20 (15 ftlb.) Nm
Nuts on pillars Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts	Item 2	Tightening torque	20 (15 ftlb.) Nm

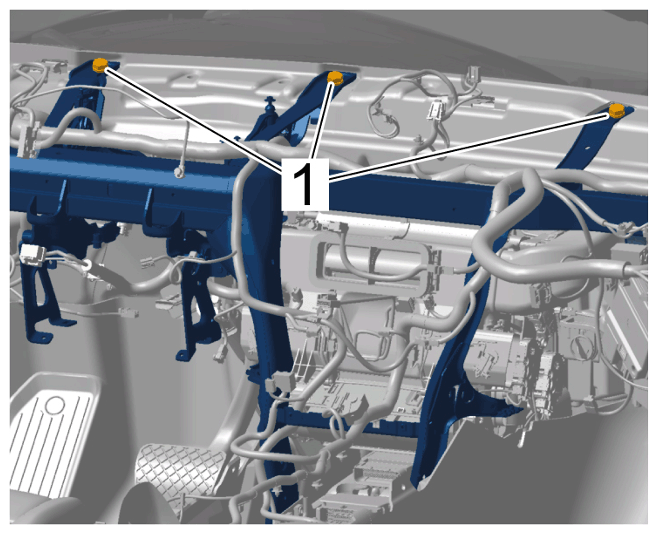

Screws, top Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	20 (15 ftlb.) Nm

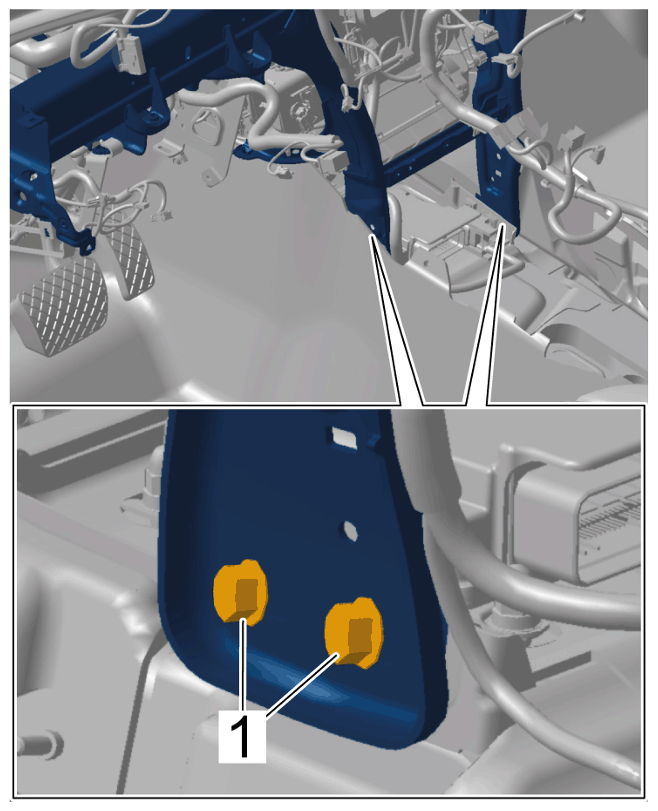

Screws, bottom Courtesy of PORSCHE CARS NORTH AMERICA, INC. Carpet	Item 1	Tightening torque	20 (15 ftlb.) Nm

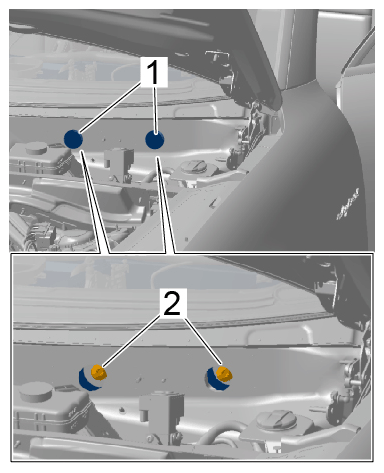

Screws, front Courtesy of PORSCHE CARS NORTH AMERICA, INC. Stoppers	Item 2	Tightening torque	20 (15 ftlb.) Nm
Mounting saddle to retaining frame	Hexagon-head bolt, M8 x 35	Tightening torque	20 (15 ftlb.) Nm
Screw securing heating/fresh-air unit to dashboard bracket	Item 1	Tightening torque	3.6 (2.6 ftlb.) Nm
