WM, 513855 Replacing A-Pillar Reinforcement: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

PARTS DESCRIPTION

Part number Description Addition Quantity
> 99919022901 BLIND RIVET 999.190.229.01
> 99919022901 BLIND RIVETS 999.190.229.01
> 99919022901 BLIND RIVETS 999.190.229.01
> 99919022901 BLIND RIVETS 999.190.229.01

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14347435Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14347436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14347437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and straightening system General workshop equipment > VAS 811 017
G14347438Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14347439Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6755
G14347440Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14347441Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6530A
G14347442Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14347443Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14347444Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G14347445Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G14347446Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G14347447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14347448Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G14347449Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G14347450Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14347451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

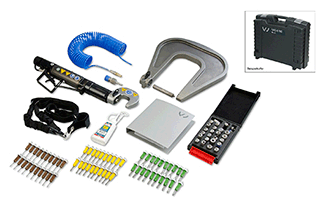

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14347452Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14347453Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14347454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

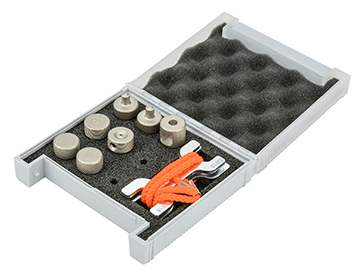

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14347455Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14347456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

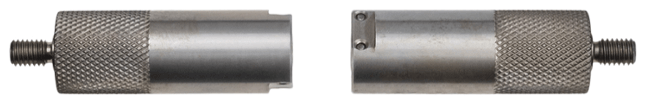

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14347457Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14347458Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14347459Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14347460Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G14347461Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G14347462Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment > VAS 882 001
G14347463Courtesy of PORSCHE CARS NORTH AMERICA, INC.

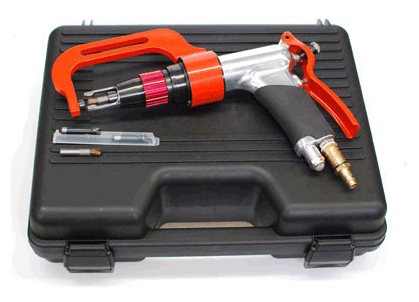

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14347464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14347465Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14347466Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14347467Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14347468Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14347469Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14347470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14347471Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14347472Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14347473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14347474Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hot-air blower General workshop equipment > V.A.G 1416
G14347475Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14347476Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14347477Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14347478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive   Application depth 3 mm
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive   Application depth 3 mm
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive   Application depth 3 mm
