WM, 635719 Removing And Installing Rear Retaining Strip: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value
Nuts for retaining strip on tail light	Item 1	Tightening torque	4 N.m (3 ft.lb)

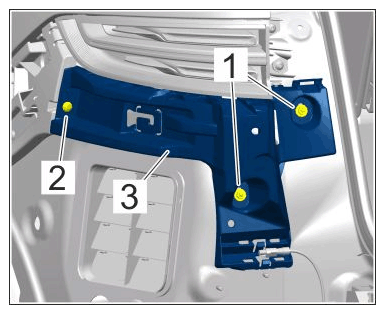

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining strip on tail light
Screw for retaining strip on tail light	Item 2	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining strip on tail light
Nuts on retaining strip, centre	Item 1	Tightening torque	4 N.m (3 ft.lb)

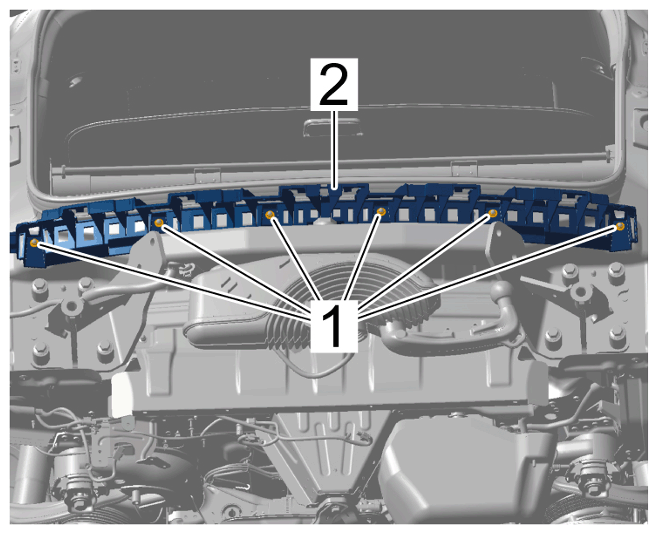

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Retaining strip to tail light	Item Z	Gap dimension	8 mm

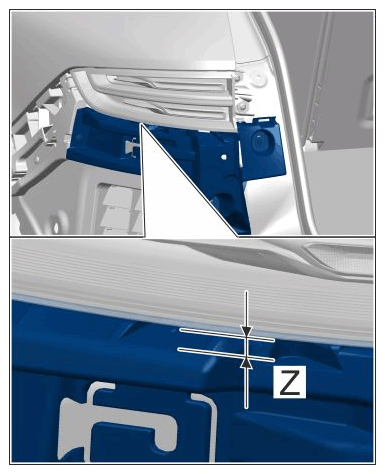

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light

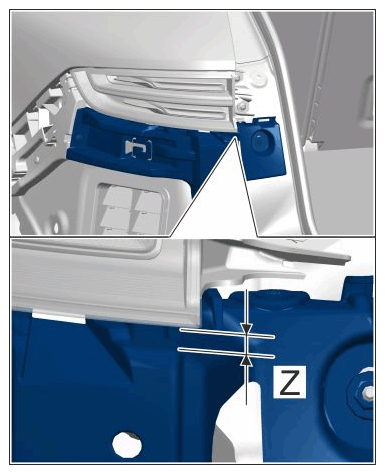

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light
Retaining strip to tail light	Item X	Gap dimension	6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light
