WM, 635519 Removing And Installing Rear Apron: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image

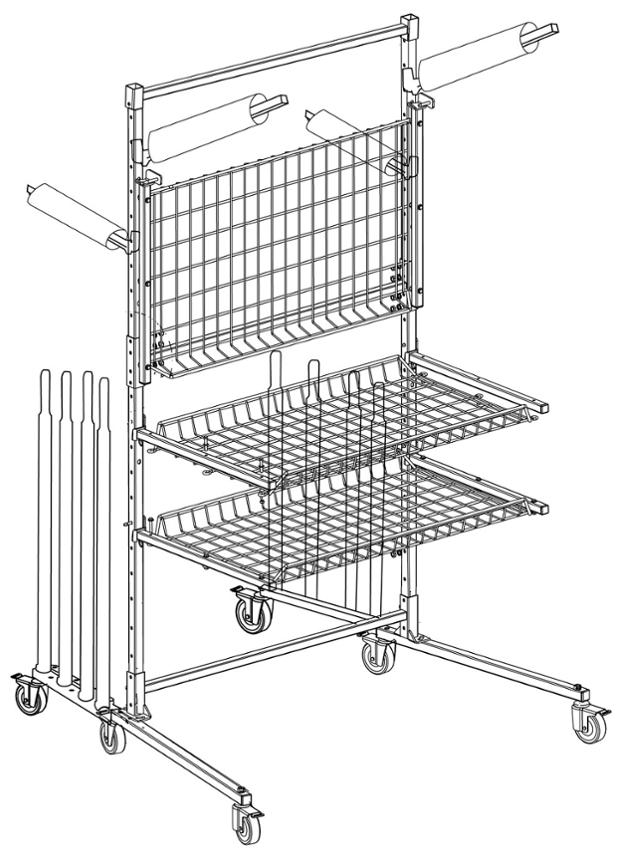

storage system	Vehicle-specific workshop equipment	> VAS 6760	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value
Screws securing rear apron to retaining frame	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)

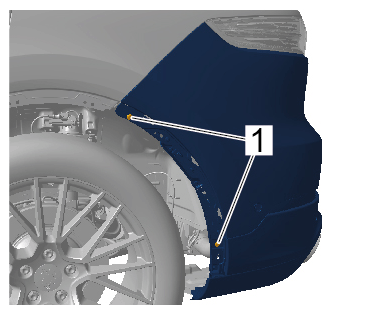

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear apron to retaining frame
Screws securing heat shield to rear apron	Item 2	Tightening torque	3.5 N.m (2.5 ft.lb)

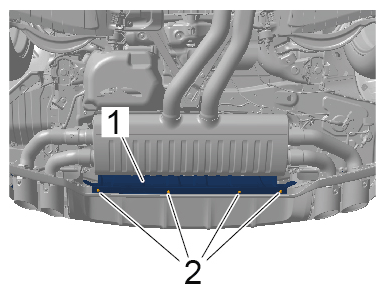

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing heat shield to rear apron
Screw securing tailgate stop to rear apron	Item 2	Tightening torque	10 N.m (7.5 ft.lb)

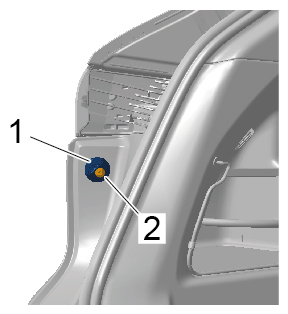

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing tailgate stop to rear apron
Screw securing rear apron to frame for light	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)

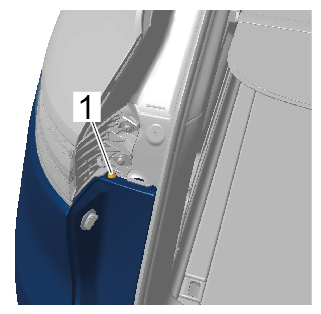

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear apron to frame for light
