WM, 631719 Removing And Installing Retaining Strip: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value Tolerance 1 |
Tolerance 2 |

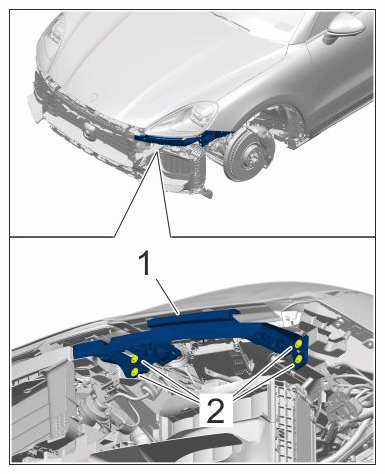

| Screws securing retaining strip to front end |
|
Tightening torque |
6 N.m (4.5 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|

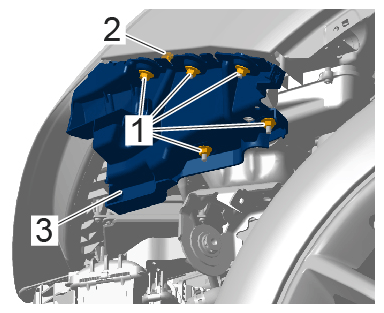

| Nuts securing retaining strip to wing |
Item 1 |
Tightening torque |
4 N.m (3 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts |
|
|
|
|
