WM, 631019 Removing And Installing Front Bumper: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

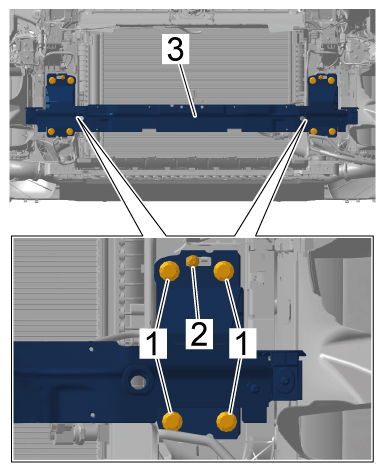

| Front bumper to front end |
Item 1 |
Tightening torque |
60 N.m (44 ft.lb) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front bumper |
|
|
|
|
|
| Screw for pre-assembly of front bumper on front end |
Item 2 |
Tightening torque |
8 N.m (6 ft.lb) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front bumper |
|
|
|
|
|
