WM, 559015 Adjusting Rear Lid: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6936	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6937	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6938	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1

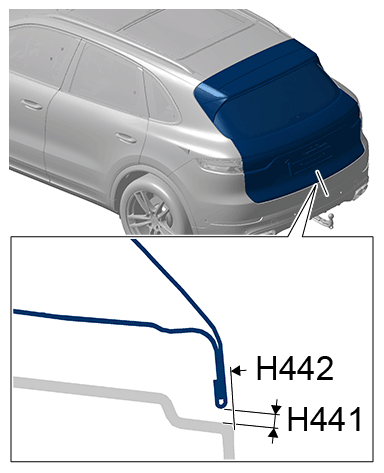

Rear lid to rear apron (H441)		Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron (H442)	Offset	Gap dimension	1 mm	+ 1.4 mm,- 1.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron, side (H431)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron, side (H432)	Offset	Gap dimension	0.7 mm	+ 0.6 mm,- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof (H401)		Gap dimension	5.5 mm	+ 1.5 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof (H402)	Offset	Gap dimension	-1.2 mm	+ 1 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

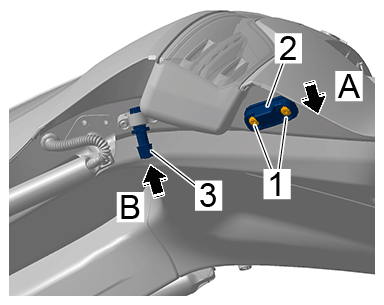

Rear lock lower part to rear lock carrier	Item 1	Tightening torque	21 (16 ftlb.) Nrc	l
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Rear lid to lid hinge	Item 1	Tightening torque	12 N.m (9 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

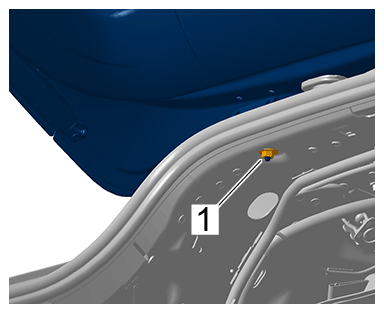

Rear lid hinge to bodyshell	Item 1	Tightening torque	23 (17 ftlb.) Nrc	l
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut
Guide wedge to rear lid	Item 1	Tightening torque	6 N.m (4.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
