WM, 551019 Removing And Installing Front Lid Release: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws for front lid release Item 1 Tightening torque 2 N.m (1.5 ft.lb)

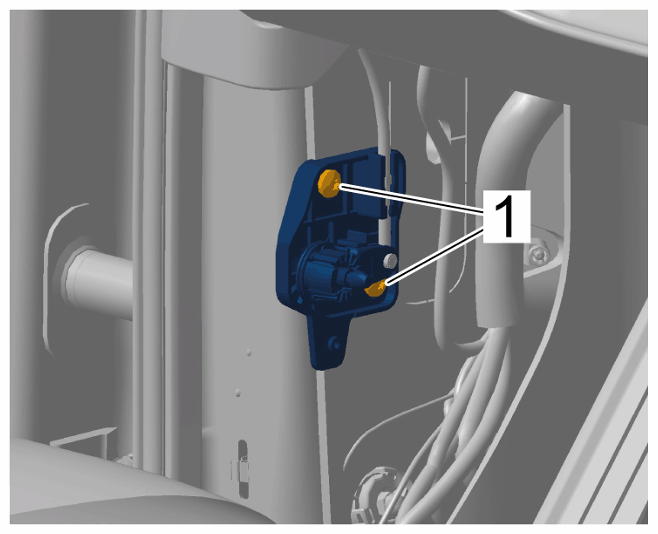

G14277199Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
