WM, 53485505 Replacing Rear Side Member (Section): Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

PART DESCRIPTION

Part number Description Addition Quantity
99919022901 BLIND RIVETS
999.190.229.01
99919022901 BLIND RIVETS
999.190.227.01
99919022901 BLIND RIVETS
999.190.229.01
99919022901 BLIND RIVETS
999.190.227.01
99919022901 BLIND RIVETS
999.190.227.01
99919022901 BLIND RIVETS
999.190.229.01
99919022901 BLIND RIVETS
999.190.227.01
Tool denomination Type Tool number Image
Tool trolley General workshop equipment V.A.G 2010/2A-1
G14276777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

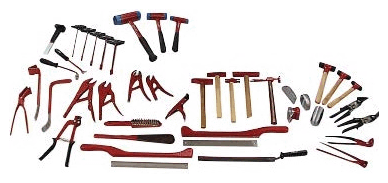

Aluminium tool set General workshop equipment V.A.G 2010/2A
G14276778Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and alignment system, professional Vehicle-specific workshop equipment VAS 6527
G14276779Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and straightening system General workshop equipment VAS 811 017
G14276780Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment VAS 811 019
G14276781Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment VAS 6755
G14276782Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment VAS 6545A
G14276783Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment VAS 6530A
G14276784Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment VAS 821 101
G14276785Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment VAS 6741
G14276786Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment VAS 821 003
G14276787Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment VAS 821 005
G14276788Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment VAS 821 001
G14276789Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment VAS 6388A
G14276790Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment VAS 852 001
G14276791Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, aluminium General workshop equipment VAS 6572/2
G14276792Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment VAS 6571/1
G14276793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compact Booster Vehicle-specific workshop equipment VAS 6790
G14276794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment VAS 6790/2
G14276795Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment VAS 6790/64
G14276796Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment VAS 6790/65
G14276797Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment VAS 6790/67
G14276798Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet bar extension Vehicle-specific workshop equipment VAS 6790/68
G14276799Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment VAS 6790/70
G14276800Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment VAS 6792/2
G14276801Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment VAS 6792/28
G14276802Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers set, 4-piece Vehicle-specific workshop equipment VAS 6635
G14276803Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers Vehicle-specific workshop equipment VAS 6635/5
G14276804Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment VAS 882 001
G14276805Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Spot-Weld Remover General workshop equipment VAS 6322A
G14276806Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment VAS 6319
G14276807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment VAS 6780
G14276808Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment VAS 6598A
G14276809Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment V.A.G 1561B
G14276810Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment VAS 6957
G14276811Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FDS sockets Vehicle-specific workshop equipment VAS 852 007A
G14276812Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment VAS 6631
G14276813Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment V.A.G 1761/1
G14276814Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment VAS 6648
G14276815Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment V.A.G 1628
G14276816Courtesy of PORSCHE CARS NORTH AMERICA, INC.

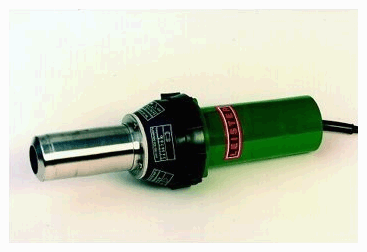

Hot-air blower General workshop equipment V.A.G 1416
G14276817Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment VAS 6936
G14276818Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment VAS 6937
G14276819Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment VAS 6938
G14276820Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Bead of adhesive   Application depth 3 mm
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Bead of adhesive   Application depth 3 mm
Drill bit   Diameter 6, mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive   Application depth 3 mm
