WM, 50811900 Removing And Installing Cross Panel (Upper Section): Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

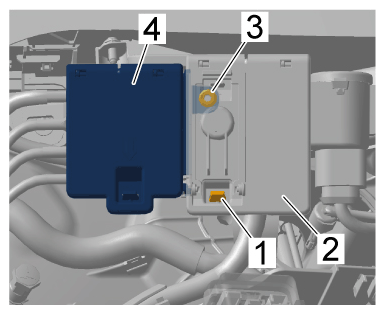

| Nut securing power distributor at the front to external power connection | Item 3 | Tightening torque | 9 N.m (6.5 ft.lb) | ||
|
Power distributor, front |
|||||
| Nuts securing external power connection to bracket | Item 1 | Tightening torque | 3 N.m (2 ft.lb) | ||
| Spring nuts securing heat protection panel to cross panel | Item 1 | Tightening torque | 2.5 N.m (1.75 ft.lb) | ||
| Screws securing cross panel to bracket | Item 1 | Tightening torque | 10 N.m (7.5 ft.lb) |
