WM, 505319 Removing And Installing Wing Connection Panel: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

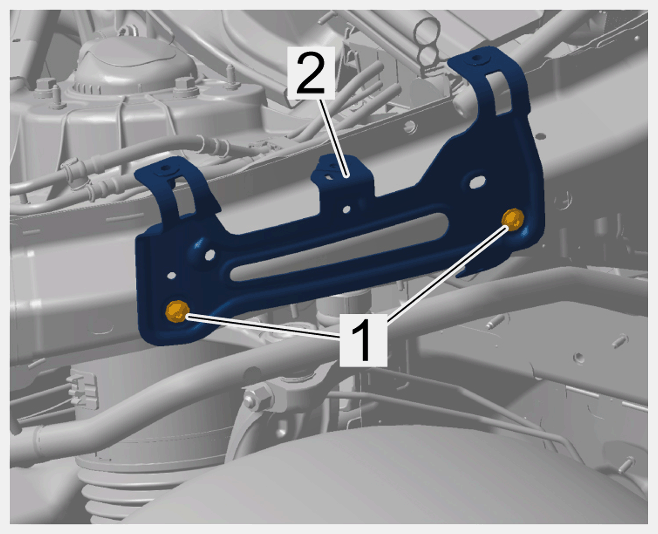

| Front wing connection panel to upper frontend | Item 1 | Tightening torque | 10 N.m (7.5 ft.lb) | ||
|
Screws |
|||||

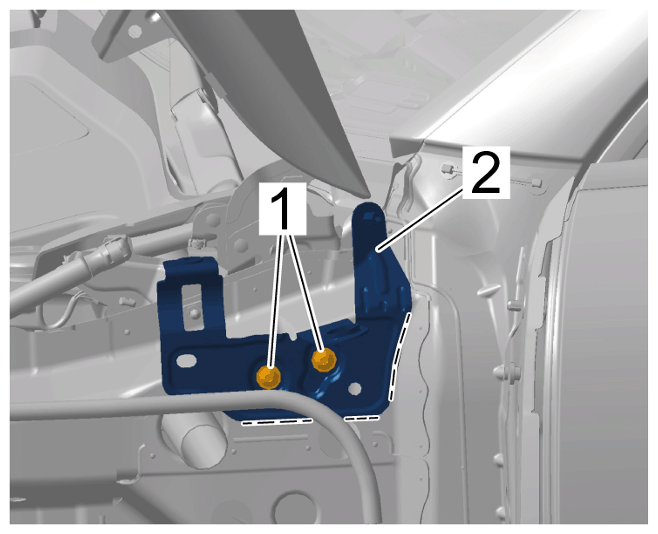

| Rear wing connection panel to upper frontend | Item 1 | Tightening torque | 10 N.m (7.5 ft.lb) | ||
|
Screws |
|||||
| Sensor for body to body (front) | Internal hexagon round-head bolt, M6 x 25 | Tightening torque | 8 N.m (6 ft.lb) |
