WM, 505219 Removing And Installing Intermediate Piece: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screws securing intermediate piece to body front section | Item 2 | Tightening torque | 10 N.m (7.5 ft.lb) | ||
|
Screws securing intermediate piece to body front section |
|||||

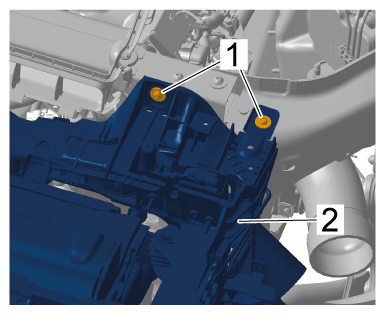

| Screws securing upper lock carrier to body front section | Item 1 | Tightening torque | 8 N.m (6 ft.lb) | ||
|
Screws |
