Gap Dimensions Of Rear Lid

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

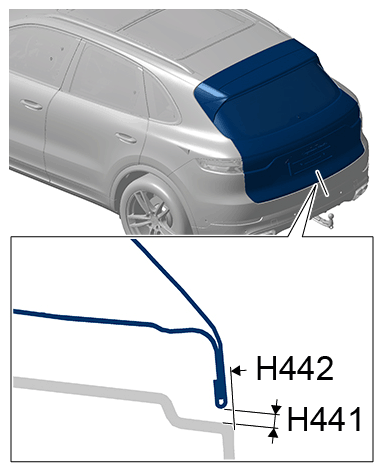

Rear lid to rear apron (H441)		Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron (H442)	Offset	Gap dimension	1 mm	+ 1.4 mm - 1.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

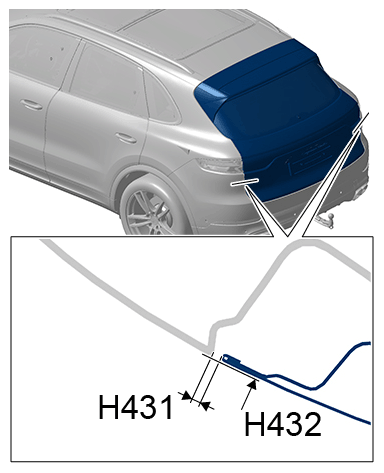

Rear lid to rear apron, side (H431)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron, side (H432)	Offset	Gap dimension	0.7 mm	+ 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension				- 1.1 mm

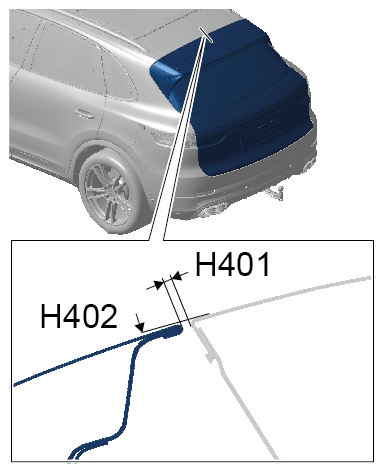

Rear lid to roof (H401)		Gap dimension	5.5 mm	+ 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension				- 0.5 mm
Rear lid to roof (H402)	Offset	Gap dimension	- 1.2 mm	+ 1 mm - 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
